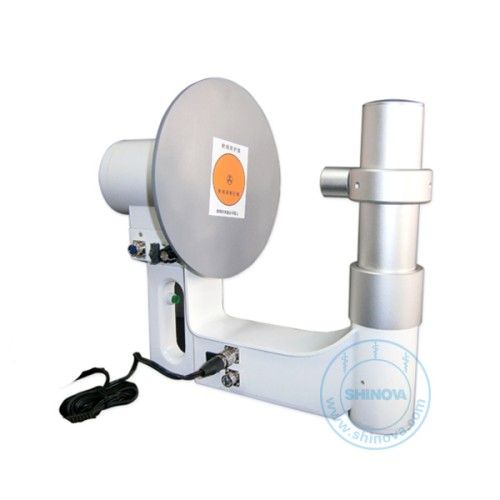

Veterinary Portable X-Ray(PX30V(S))
Model: PX30V(S)
Feature:
1. Without the darkroom and protecting, can work at any time.
2. High sensitivity, and high resolution Image intensifier, offer you newer visual feeling
3. Low radiation dose, reliable protection, simple structure, small volume and light weight,
both can be handheld and used on the table, its very convenient to operate.
4. Can be connected to video monitor, computer, TV set and video printer.
Specification:
Valid visual field: ≥Φ100mmhi;100mmhi;100mm
X-ray tube current: 0.15mA
Max thickness: ≤300 mm0 mm0 mm
Screen Brightness: ﹥20 cd/m2d/m2
Image resolution: ≥50 Lp/cmp/cmp/cm
Gray scale: 7
Contrast: <4%t;4%
X-ray tube voltage: 60kV
Power consumption: 70 VA
Leaking X-ray: <2.58×10-5C>Kg-1H-15C>Kg-1H-11H-1
Scattered X-ray: <1.29×10-5C>Kg-1H-15C>Kg-1H-11H-1
Power Supply: AC 110V~250V/50Hz or 12V
Configuration:
Standard: Main unit, protecting board, power part, power supply cable, manual, carrying
case.
Optional: Built-in Battery, Video Monitor, Video Printer, Pedal, Image Workstation.
