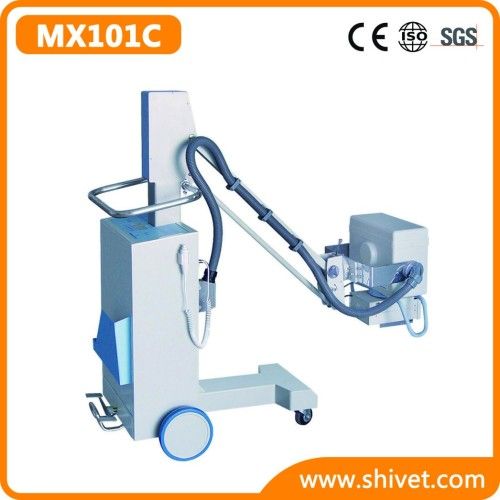

Veterinary High Frequency Mobile X-ray Machine(MX101C)
Model: MX101C
Features:
1. Structure designed based on anthropotomy, with beautiful appearance, and easy to operate.
2. With high frequency inverter to emit high quality X-ray and low dose on skin.
3. With techniques of KV analog closed loop control, mAs digital closed loop control and micro-processing real-time control to ensure precision and repeatability of the dose.
4. With kV, mAs two button adjustment, LCD display, multifunction of safeguard.
5. With 50 preset exposure programs, and can be modified and stored by the user for convenient operation.
6. With a high-quality knockdown X-ray generator to reduce irradiation, which is much safer to environment and operator.
7. With a symmetrical beam applicator to adjust the X-ray field and a collimator lamp to locate the filed to ensure accurate radiograph.
Specifications:
Power Output: 5.0KW
Frequency: 40KHz
X-ray Tube: Fixed anode
Focus 1.5mm
Tube Voltage: 40~120KV (interval 1KV)
Tube Current: 40~49KV 100mA 1~180 mAs
50~59KV 77mA 1~140 mAs
60~69KV 64mA 1~125 mAs
70~79KV 55mA 1~110 mAs
80~89KV 49mA 1~100 mAs
90~99KV 44mA 1~80 mAs
100~109KV 32mA 1~63 mAs
110~120KV 25mA 1~50 mAs
MAs: 1.0~180 mAs (46 steps)
Power Supply: 220V± 10% 50Hz inner-resistance≤ 1.0Ωce≤ 1.0Ω.0Ωce≤ 1.0Ω
Operation Method: Wire/Wireless control
Packing Details: 1240mm× 900mm× 1460mmtimes; 1460mmtimes; 1460mm
N. W. 150kgs G. W. 210kgs
