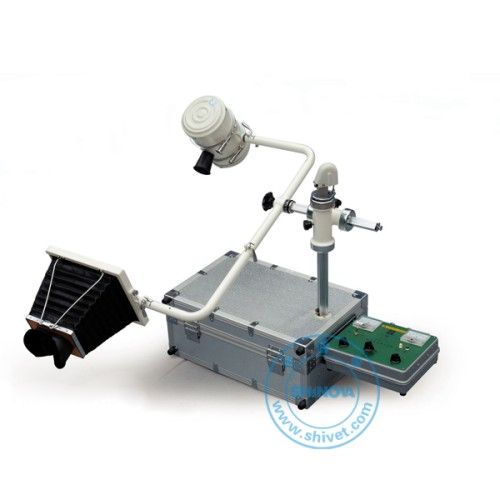

Portable Veterinary X-ray unit(PX 10V)
Model: PX 10V
This unit is a portable diagnostic X-ray unit r-ray-proof with a single focus. It can be use for medical fluoroscopy and radiography on bone, heart, skull and foreign body in the body, etc. It is easy to assemble and operate.
Specifications:
1. Operation condition of the unit
Environmental temperature: 10-40º Crdm; Crdm; C
Elative humidity: 30%-75%
Atmospheric pressure: 70-106kPa
2. Power condition: AC 220V± 10%(single phase), 50Hz/60Hz, Net resistant ≤ 2Ωtant ≤ 2Ω2Ωtant ≤ 2Ω
3. The maximum tube voltage: 75kVp
4. The maximum tube current: 10mA
5. Selection scope of time: 0.2-9.9sec.
6. The focus of X-ray tube: 1.5× 1.5mm2 1.5mm2 1.5mm2
7. Horizontal turning angle of the X-ray unit head: 360o
8. X-ray unit head turning angle around the horizontal axis: 270o
9. Stretching & retracting range of the X-ray unit head: 700mm,00mm,00mm,
10. Range of movement: Up-down: 220mm, left-right: 130mm,
11. Weight: 25Kg
12. Working current of the equipment: 5A
