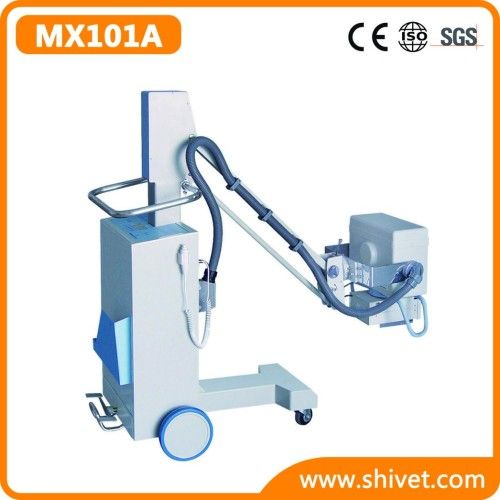

Veterinary High Frequency Mobile X-ray Machine(MX101A)
Model: MX101A
Features:
1. With high frequency inverter to emit high quality X-ray and low dose on skin, and ensure excellent definition and contrast of pictures.
2. With techniques of KV analog closed loop control, mAs digital closed loop control and micro-processing real-time control to ensure precision and repeatability of the dose.
3. With kV, mAs two button adjustment, LCD display, multifunction of safety guard.
4. With 50 preset exposure programs, and can be modified and stored by the user for convenient operation.
5. With a high-quality knockdown X-ray generator to reduce irradiation, which is much safer to environment and operator.
6. With a symmetrical beam applicator to adjust the X-ray field and a collimator lamp to locate the filed to ensure accurate radiograph.
Specifications:
Power Output: 3.5KW
Frequency: 40KHz
X-ray Tube: Fixed anode
Focus: 1.5mm
Tube Voltage: 40~110KV (interval 1KV)
Tube Current: 40~49KV 63mA 1~125 mAs
50~59KV 56mA 1~110 mAs
60~69KV 45mA 1~90 mAs
70~79KV 40mA 1~80 mAs
80~89KV 36mA 1~71 mAs
90~99KV 32mA 1~63 mAs
100~110KV 20mA 1~40 mAs
MAs: 1.0~125 mAs (45 steps)
Power Supply: 220V± 10% 50Hz inner-resistance≤ 1.0Ωce≤ 1.0Ω.0Ωce≤ 1.0Ω
Operation Method: Wire/Wireless control
Packing Details: 1240mm× 900mm× 1460mmtimes; 1460mmtimes; 1460mm
N. W. 150kgs G. W. 210kgs
