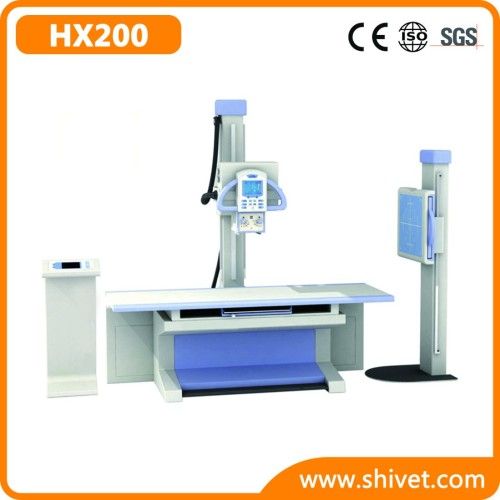

200mA Veterinary High Frequency X-ray Radiograph System (HX200) - CE Marked
bargain
add to cart| Model NO. | HX200 |
| Trademark | SHINOVA |
| Specification | ISO |
| Certification | CE, ISO13485 |
| Transport Package | Wooden Carton |
| Origin | China |
200mA Veterinary High Frequency X-ray Radiograph System (HX200) - CE Marked
Model: HX200
Specifications:
Power Output: 15KW
Inverter Frequency: 40KHz
Dual focus: Small focus: 0.3 Large focus: 0.6
Thermal capacity: 212kJ (300 KHU)
The speed of the rotary anode: 3000rpm
Tube Voltage: 40~125kV
Tube Current: 200mA
MAs: 0.4~360mAs
Table radiography
Grid density: 103L/INCH; Grid ratio: 10: 1
Focusing distance: 120cm
Stationary type: 15'× 18'(import) 18"(import)uot;(import)
Bucky stand radiography
Grid density: 103L/INCH; Grid ratio: 10: 1
Focusing distance: 150cm Stationary type: 18'× 18'(import) 18"(import)uot;(import)
Power Supply: 220V± 10% 50Hz, Capacity: ≥ 16kW: ≥ 16kW6kW: ≥ 16kW
Operation Method : Close-table graphic program controlled LCD touch screen operation;
Wireless remote control exposure
(Optional: Control console of close-table graphic program controlled LCD touch screen operation)
Model: HX200
Specifications:
Power Output: 15KW
Inverter Frequency: 40KHz
Dual focus: Small focus: 0.3 Large focus: 0.6
Thermal capacity: 212kJ (300 KHU)
The speed of the rotary anode: 3000rpm
Tube Voltage: 40~125kV
Tube Current: 200mA
MAs: 0.4~360mAs
Table radiography
Grid density: 103L/INCH; Grid ratio: 10: 1
Focusing distance: 120cm
Stationary type: 15'× 18'(import) 18"(import)uot;(import)
Bucky stand radiography
Grid density: 103L/INCH; Grid ratio: 10: 1
Focusing distance: 150cm Stationary type: 18'× 18'(import) 18"(import)uot;(import)
Power Supply: 220V± 10% 50Hz, Capacity: ≥ 16kW: ≥ 16kW6kW: ≥ 16kW
Operation Method : Close-table graphic program controlled LCD touch screen operation;
Wireless remote control exposure
(Optional: Control console of close-table graphic program controlled LCD touch screen operation)
| HX200 | HX200A | |||
| Power Output: | 15kW | 25kW | ||
| Main Inverted Frequency: | 40kHz | |||
| X-ray Tube | Focus | Big Focus: | 0.6 | 1.0 |
| Small Focus: | 0.3 | 0.3 | ||
| Thermal Capacity: | 212kJ(300kHU) | 212kJ(300kHU) | ||
| Speed of Rotary Anode: | 3000rpm | |||
| Tube Current: | 200mA | |||
| Tube Voltage: | 40-125kV | |||
| mAs: | 0.4-360mAs | |||
| Bucky Grid | Grid Density: | 103/INCH | ||
| Grid Ratio: | 10: 01 | |||
| Focus Distance: | 120CM | |||
| Stationary 18' x18'; x18"" | ||||
| Power Supply: | 220V 50Hz/60Hz; Capacity≥ 16kVA6kVA6kVA | 380V 50Hz/60Hz; Capacity≥ 30kVA0kVA0kVA | ||
| Operation Method: | Graphic touch-screen LCD; Wireless remote-control exposure | |||
| Option: | Console of graphic touch-screen LCD | |||
