-Summary

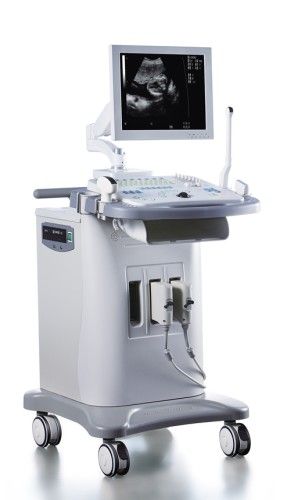

The HY3150 system offers many brilliant features with advanced technologies, such as brand new digital beam- forming technology with high precision; Various image processing technologies like real-time dynamic aperture (RDA), real-time dynamic frequency scanning, local zoom, super capacity for cine loop and USB port; Advanced probe technologies including multi-frequency, high density scanning, multi-probe ports; Powerful measurement software packages. It is largely used in the diagnose and examination of body organs such as abdomen, intracavity, cardiac and peripheral vascular, obstetrics and gynecology, urology and so on. The operator experience more interests in digital ultrasonic technology from all these features including the backlit keyboard.
Technical Specification:
-Application
Abdomen, OB&GYN, small parts, urology, cardiology, eye, eye, eye
-Displaying Mode
B, B/B, 4B, B/M, M, A
-Scanning Method
Electronic convex, electronic linear
-Scanning techniques
Digital beam forming, dynamic aperture, DFS, DRF, DRA, THI
-Grey Scale
256
-Probe
Multi-frequency probe with 5 steps
-Cine loop
256 frame
-Image storage
Built-in memory(64 frames), storage via USB port
-Zoom
Intelligent zoom, local zoom
-Software packages
General software packages for abdomen, OB/GYN, small parts, cardiology etc. Special cardiology software package: LV, Mitral valve, Aortic valve, CO, SV, EF etc. Special fetal software package: LMP, fetal growth curve.
-General measurement
B mode: Distance, circumference, area, volume, ratio, angle, %stenosis etc;
M mode: Heart rate, velocity etc;
EDD tables: BPD, GS, CRL, FL, HC, AC, LMP, OB table(Tokyo, Hadlock, Hansmann), LMP functions.
-Probe frequency
2.5MHz~10.0MHz(depend on the probe type)
-Standard configuration
Main unit, 3.5MHz convex probe, 2 probe connectors, 15' monitor, 2 USB ports ports
-Optional configuration
7.5MHz linear probe, 6.5MHz transvaginal probe, trolley, biopsy kit, video printer, video capture board.
