-Summary

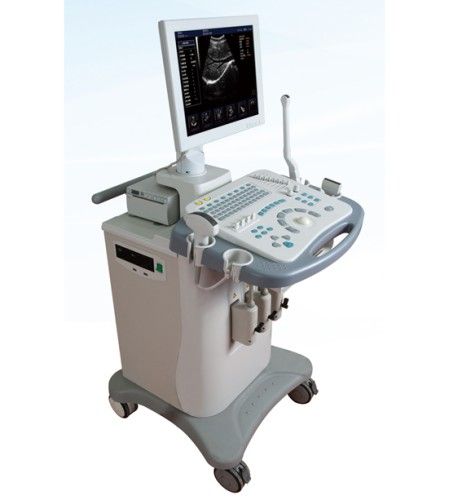

Powerful, efficient imaging system
With full-digital beam forming and B/W Doppler ultrasonic imaging technology, the HY5588 integrates with the lastest image processing technologies such as THI, composite gain, multi-beam parallel processing and high efficient full-digital image management system. Consequently, distinctively clear images make the doctors' more confident in clinic diagnose. The ergonomic design makes sure that the operation is easy and improves the clinic examation efficiency.
-Applications
Abdomen, obstetrics and gynecology, cardiology, thyroid gland, small parts, urology, superficial organziation, orthopedic surgery
-Scanning method
Electric focusing, acoustic lens focusing, transmitting focusing 1-4 optional and 8 stages adjustable
-Display mode B, 2B, 4B, B/M, B/D, M, PW
-Gray 256 level
-Probe frequency 2.5MHz~10MHz(depend on th probe type)
-Imaging techniques
Digital beam forming, dynamic aperture, DRF, RDF, RDA, THI
-Image Processing
TGC, total gain, dynamic filter, B/W image frame correlation, dynamic range shifting, blood flow image selectable, wall filter broad band, image left/right reverse, up/down reverse, 90 degree turning, 8 slides STC, dynamic range adjustment, edge enhancement, convex multi-angle scanning, PIP
-Zoom
Intelligent zoom, part zoom, 4 times/16 stages~6 times/22 stages
-Measurement function
B mode: Distance, angle, perimeter and area (ellipse method, Trace method), volume, %stenosis, histogram, cross-section diagram
M mode: Cardiac rate, time, distance, speed.
Specific measurement: Histogram, %Area Sten, %Diam Sten, BSA
-Software packages
Gynecology, OB, Urology, andrology, Cardiology, periphery vascular, small parts
- Body mark
≥ 200. Abdoman, andrology, cardiology, gynecology, musculoskeletal, obstetrics, pediatric, small part, urologylogylogy
-Cine loop
256~1024 frames. Cine loop speed adjustable.
-Image storage
256 frame of B/W image storage, 80G hard disk, storage for single image in format of BMP, JPEG, PNG etc
-Interface
DICOM3.0, USB 2.0, RS-232, internet port, parallel printing port, parallel communication port, DVD-ROM
-Image management
Specific software for memory, archive, read and transmit
-Standard configuration
Main unit, 15' LCD monitor, 3.5MHz convex probe( HY7257C3), three probe connectors, 5 USB ports ports
-Option configuration
3.5MHz micro-convex probe (HY7264C3), 6.5MHz vaginal probe (HY7265C6), 7.5MHz high frequency linear probe( HY7258L7), image recorder, laser printer, inkjet printer, DICOM3.0, DVD-ROM.
