Model: MF-M-01I

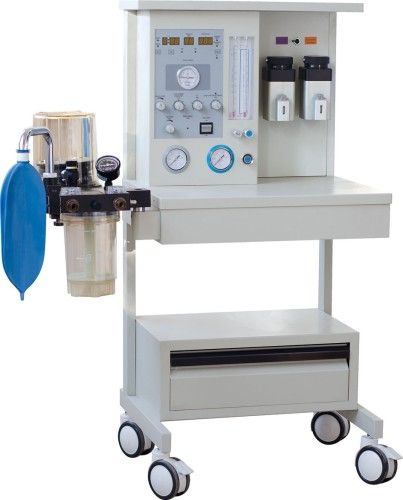

Product Name:Anesthesia machine MF-M-01I with one vaporizer
Intro:This paragraph anesthesia machine uses high brightness digital direct or knobs to adjust the parameters of a single bit evaporator tank, integrated integrated breathing circuit, four meter, given tolerance pressure type, synchronous anesthesia ventilator, and there is power-off delay, the whole machine through the CE certification, for many years won the first sales of private hospitals, high cost
Specifications:
Pneumatically drivenelectronicallycontrolledsystem
Built-in ventilator, LED displayscreen
With 1 patient circuit foradult(Option:patient circuit for children).
2-tube flowmeters, O2 & N2O; 0.1 L/Min~10L/Min;/Min;/Min;
Onevaporizer,Enflurane/Isoflurane/Sevoflurane;(Option: Halothane)
Oxygen Flush: 25~75 L/Min;
Respiration Mode: IPPV,SIPPV,Manu
Tidal Volume: 50~1500 mL;
I:E: 1:1.5; 1:2.0; 1:2.5; 1:3
RespirationFrequency: 4~40 bpm
Ptr: -10~10 hPa;
CO2 absorber capacity: 1.5 kg
Alarm parameter: upper/lowerlimitofventilation volume, upper /lower limit of airway pressure, tidalvolumeexceedlimitation, no tidal volume output, apnea, AC power malfunction,batterylowpower
Loop part:
Integrateddesign, integrated breathing circuits
Evaporator:
High-precision single evaporatorconfiguration, enflurane or isoflurane or Sevflurane or Haloflurane
Concentration adjustment range: 0.5 ~ 5%VOL
Evaporator flow, pressure, andautomatictemperature compensation function
Self-locking feature
Configuration:
Vaporizer: one vaporizer, Enflurane/Isoflurane/Sevoflurane(Option: Halothane)
Anesthesia gas concentration range:0.5~5%
Soda lime absorption system: resistance to high temperature of 176 degrees Celsius.
CE & ISO certificates approvedrovedroved
