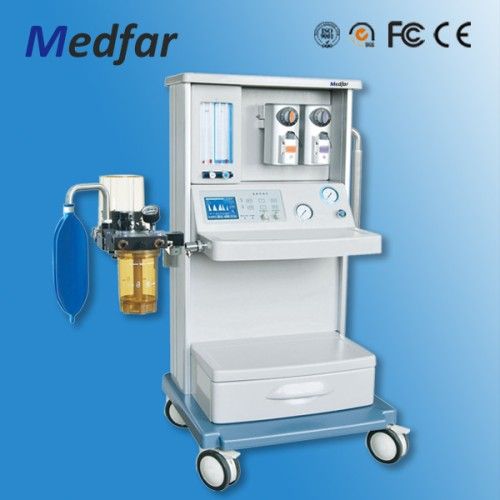

Anesthesia machine MF-M-01BII With two vaporizers:
Intro:
This paragraph anesthesia machine adopts LCD display, direct style knob to adjust the parameters, double-digit evaporator tank, integration of integrated breathing circuit, four meter, set the volume limit pressure synchronous anesthesia ventilator, and has power-off delay, machine through the CE certification, is the mid-range model in the anesthesia machine.
Specifications
Pneumatically drivenelectronicallycontrolled system
Built-in ventilator, 5.4' LCD displayisplay
With 1 patient circuit for adult (Option:patient circuit for children).
4-tube flowmeters, O2 & N2O ;0.1 L/Min~ 10 L/Min;/Min;/Min;
Oxygen Flush: 25~75 L/Min;
Respiration Mode: IPPV, SIPPV, IMV, SIMV,PEEP, Manu, Sigh
Tidal Volume: 0~1500 mL;
I:E: 4:1, 3:1, 2:1, 1:1, 1:1.5, 1:2.0,1:2.5, 1:3, 1:4;
Respiration Frequency: 1~99bpm;
PEEP: 1~10 hPa;
Ptr: -10~10 hPa;
CO2 absorber capacity: 1 kg
Lung compliance: ≤ 30 mL/kPa;kPa;kPa;
IMV frequency: 1~12bpmInspiratory Plateau: 0~1S;
Alarm parameter: upper /lower limit ofairway pressure, tidal volume exceedlimitation, no tidal volume output, apnea,AC power malfunction, battery lowpower
Loop part:
Integrated design, integrated breathingcircuitEvaporator:
High-precision single evaporatorconfiguration, enflurane or isoflurane or Sevflurane or Haloflurane
Concentration adjustment range: 0.5 ~ 5%VOL
Evaporator flow, pressure, andautomatictemperature compensation function
Self-locking featureConfiguration:
Vaporizer: one vaporizer,Enflurane/Isoflurane/Sevoflurane(Option: Halothane)
Anesthesia gas concentration range:0.5~5%
Soda lime absorption system: resistant to high temperature of 176 degrees Celsius.
CE & ISO certificates approvedrovedroved
