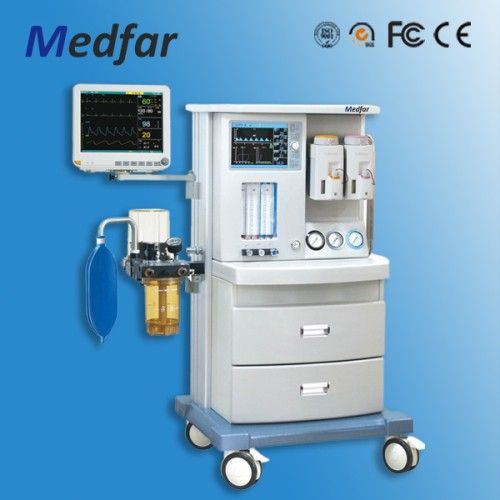

Anesthesia machine MF-M-850
Intro:This paragraph anesthesia machine adopts advanced and stable APL valve device, suitable for low flow anesthesia, color LCD screen, can display time pressure, flow time and pressure-volume loop, with oxygen concentration monitoring, and optional plug-in patient monitoring, composition anesthesia workstation.
Specifications:
Anesthesia ventilator
Pneumatically driven electronically controlled system
Built-in ventilator, 10.4' LCD displayisplay
With 1 patient circuit for adult (Optional:patient circuit for children)
5-tube flowmeters, O2 & N2O & Air;0.1L/Min ~ 10 L/Min;10 L/Min;10 L/Min;
Two vaporizers,Enflurane/Isoflurane/Sevoflurane; (Optional: Halothane)
Oxygen Flush: 25~75 L/Min;
Respiration Mode: IPPV, SIPPV(VCV), IMV,SIMV, PEEP, Manu, Sigh
Tidal Volume: 0~1500 mL;
I:E: 8:1~1:10
Respiration Frequency: 1~99bpm;
PEEP: 1~10 hPa;
Ptr: -10~10 hPa;
CO2 absorber capacity: 1 kg
Lung compliance: ≤ 30mL/kPa;/kPa;kPa;
IMV frequency: 1~12bpm
Inspiratory Plateau: 0~1S;
O2 Concentration: 21%~100%
Alarm parameter: upper /lower limit ofairway pressure, tidal volume exceed limitation, no tidal volume output, apnea,AC power malfunction, battery low power
Patient Monitor
12.1''TFT large screen of high resolution
ECG: 5-lead, gain:×2.5mm/mV ×5.0mm/mV×10mm/mV ×20mm/mV, analysis of ST segment and abnormal of heart rate(anti-defibrillate, anti-HF electrotome)ate, anti-HF electrotome)ate, anti-HF electrotome)
Heart Rate: 20~250bpm
RESP: Impedance, range: 0~100bpm
SpO2: 0%~100%
Pulse Rate: 20~250bpm
NIBP: SBP, DBP, MBP, 10~270mmHg interval ofautomatic measurement 1~90min adjustable
TEMP: 0~50ºCordm;Cordm;C
Alarm: Audio and visual alarm
Tendency record 96 hours
Loop part:
Integrated design, integrated breathingcircuit
Evaporator:
High-precision double evaporators configuration, enflurane or isoflurane or Sevflurane or Haloflurane
Concentration adjustment range: 0.5 ~ 5%VOL
Evaporator flow, pressure, and automatictemperature compensation function
Self-locking feature
Configuration:
Vaporizer: Two vaporizers, Enflurane/Isoflurane/Sevoflurane(Option: Halothane)
Anesthesia gas concentration range: 0.5~5%
Soda lime absorption system: resistance tohigh temperature of 176 degrees Celsius.
CE & ISO certificates approvedprovedroved
