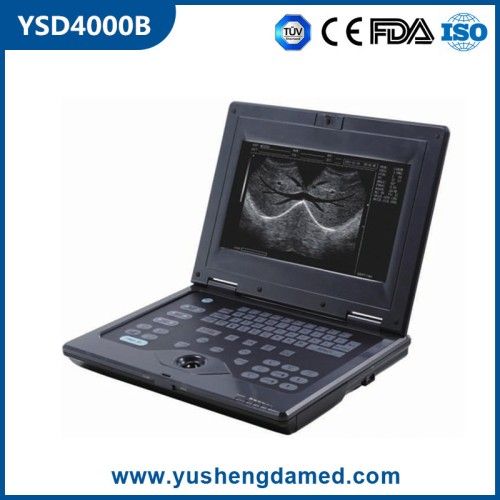

CE ISO Approved Digital Laptop Ultrasound Scanner (YSD4000B)
| Model NO. | YSD4000B |
| Type | Ultrasound Scanner |
| Group | Middle-aged and Old |
| Medical Devices Reg./Record No. | 20142230425 |
| Outlook Design | Laptop |
| Probe Frequency | 2.5MHz-10.0MHz |
| Export Range | The Whole World |
| Production Capacity. | 100 Unit in Stock |
| Permanent Image Storage | 8 |
| Transport Package | in Carton Box Packing |
| Origin | Chengdu |
| Classification | Imaging Diagnostic Equipment |
| Certification | CE, SGS, FDA, MSDS, ISO13485 |
| Medical Device Regulatory Type | Type 2 |
| Scanning Mode | Convex / Linear / Micro-Convex |
| Screen | 12 Inch |
| Display Mode | B, B+B, 4b, B+M, M |
| USB | Yes |
| Gray Scale | 256 |
| Trademark | YSD |
| Specification | 290mm*245mm*48mm |
| HS Code | 90181210 |
Main Feature:
1. 10.1'high-resolution TFT LCDTFT LCD
2. light design 1.5KG
3. Probe Frequency:2.5MHZ-10.0MHZ(Depend on the probe types)
4. Intelligentized menu,man-machine diaglogue is easy and quick
5. More magnification display, Disease diagnosis more accurate
6. USB storage is connected outside, more convenient to upload pictures
7. Large capacity of cine loop,image can display circularly and automatically
Teachnical data:
Standard Accessary
YSD4000 main unit
3.5MHz convex probe
Electric wires
User manual
Packing list
Warranty list
Option
3D function
5.0Mhz cardiac probe
6.5Mhz transvaginal probe
7.5Mhz high frequency linear probe
7.5Mhz endorectal linear
DVD-RW
VIDEO, Laser printer
Biopsy bracket
Foot switch
Probe
Why choose us:
we got production and business certification from Chengdu food and Drug Administration
we got business license from Chengdu City Administration of industry and commerce
we got products certificate of registration and have checked in the website of SFDA
we have accepted the onsite check from SFDA every quarter
we finished the training of laws and regulations in medical equipments field
We have well-established system about material purchasing, employee training,store management,after-sales service process.etc
We adheres the beliefs of 'Support Healthy Life', and our company spirits are quality, service,trust,thanksgiving;anksgiving;
1. 10.1'high-resolution TFT LCDTFT LCD
2. light design 1.5KG
3. Probe Frequency:2.5MHZ-10.0MHZ(Depend on the probe types)
4. Intelligentized menu,man-machine diaglogue is easy and quick
5. More magnification display, Disease diagnosis more accurate
6. USB storage is connected outside, more convenient to upload pictures
7. Large capacity of cine loop,image can display circularly and automatically
Teachnical data:
| Scanning mode | convex / linear / micro-convex |
| Gray | 256 |
| Monitor | 10.1 inch high resolution LCD |
| Operation panel | user-friendly, convenient and flexible with back-lit silica gel keyboard & track ball operationationation |
| Display mode | B, B+B, 4B, B+M, M |
| Scanning depth | more than 244mm |
| Resolution | lateral≤2mm, axial≤1mm≤1mm1mm≤1mm |
| Blind zone | ≤3mm;3mm;3mm |
| Geometry precision | lateral≤5%, axial≤5%l≤5%;5%l≤5% |
| Gray scale | 256 |
| Electronical focusing | 2 focuses combination randomly |
| Cine loop | 256 frames, realized in automatic successive playback and manual single step forward, backward playback |
| Permanent image storage | 8 |
| Magnification | ×0.8, ×0.8, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30, ×1.40,mes;1.05, ×1.10, ×1.20, ×1.30, ×1.40,times;1.30, ×1.40,mes;1.05, ×1.10, ×1.20, ×1.30, ×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5.(16 kinds).0, ×2.2, ×2.5.(16 kinds)5.(16 kinds).0, ×2.2, ×2.5.(16 kinds) |
| Body mark | 30 |
| Probe frequency | multifrequency |
| Pseudo color | 7 |
| Image processing | up/ down, left / right, black / white convertion, edge enhancement, gamma correction, frame correlation, pseudo color processor ( need external color display) |
| Measurement | distance, perimeter, area, volume, heart rate, gestational week, FW, AFI, EDD , maternity table, heart package etc |
| Note | date, time, name, sex, age, doctor, hospital, comment, Chinese/ English conversion |
| Output interface | PAL-D, SVGA (SVGA color monitor), USB port |
| Main power supply | AC220V±22V , 50/60Hz 50/60Hz 50/60Hz |
Standard Accessary
YSD4000 main unit
3.5MHz convex probe
Electric wires
User manual
Packing list
Warranty list
Option
3D function
5.0Mhz cardiac probe
6.5Mhz transvaginal probe
7.5Mhz high frequency linear probe
7.5Mhz endorectal linear
DVD-RW
VIDEO, Laser printer
Biopsy bracket
Foot switch
Probe
| Probes |
| 3.5Mhz abdominal probe |
| 6.5Mhz transvaginal probe |
| 7.5Mhz linear probe |
| 3.5MHz micro-convex probe |
| 5.0 MHz micro-convex probe |
| 7.5Mhz rectum probe |
