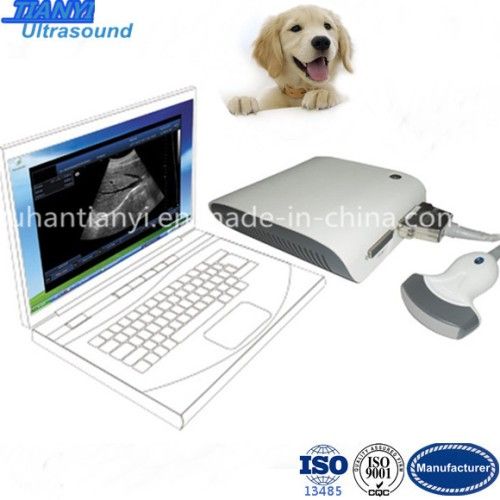

Handheld Mobile Veterinary Ultrasound Machine
Instructions:
Work with any windows computer
UBox Ultrasound Box is easy to use, only need to connect it to computer by USB cable and install the software in the computer. Then can realizable the function as a computer based ultrasound B Scanner.
The keyboard is use the computer keyboard, by software you can define your own computer keyboard keys to a certain function button. Such as the 'Space' key can be defined as 'Freeze' button, the '+' and '-' can set to value increase and decrease, all by your define.ncrease and decrease, all by your define.
Ultrasound Box scanner Main Features
-Use computer of user's, lost cost to get ultrasound scanner
-Small and light
-PC based, powerful function, large volume storage
-Full digital, clear image
-3D image function(option)
-Print by computer's USB laser/inkjet printers
-Multiple language: English, French, German, Spanish, Russian, Italian, Portuguese, etc.
Specification:
-Operation system: Windows XP(Best) or windows 7
-D-Maximum Scanning Depth: Max. 250mm
-Multi-frequency: 5 segment frequencies
-Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
-Image gray scale: 256 level gray scale
-Cine Loop: Max. 1024 frames
-Scann mode: B, 2B, B/M, M, 4B, 9B, ZOOM(Real-time zoom on B mode)
-Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge; Enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ Revision.evision.vision.
-Measurement and calculation(human):
B mode: Distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
M mode: Heart rate, time, distance, slope and stenosis;
Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
Obstetric: Gestation age, fetal weight, AFI;
Cardiology: LV, LV function, LVPW, RVAWT;
Urology: Transition zone volume, bladder volume, RUV, prostate, kidney;
Small parts: Optic, thyroid, jaw and face.
-Measurement and calculation(veterinary): Cattle: BPD, CRL, TD;
Horse: GA; Dog: GS; Cat: HD, BD; Sheep: BPD, CRL, TD
-Image store: By computer hardisk or USB disk
-Print: By USB laser/inkjet printers with computer
-DICOM3.0, medical digital imaging and communication
-3D image function(optional): Can get rebuilt 3D image by any probe
-Dimension:
-Weight: With one probe around 1.2kg
-Work time by battery(optional): About 3 hours
-Probe Connector: 2

-----------------------------------------------------------------------------------------------------------------------------------------------
Reasons for choosing us
-Manufacturer: Real manufactuer in China, get supplied from our factory directly.
-Your professional supplier: Been in the field of ultrasound develope and manufacturing since 1998.
-Compective price and stable performance: We're dedicated to the production and r&s of ultrasonic imaging system.ystem.stem.
