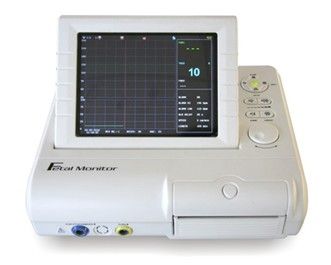

CE Approved Baby Fetal Monitor (AM-700T)
Main features
8.4' color LCD screen, 60-degree fold-upold-up
Automatic fetal movement detection
Self-correlation algorithm ensures stable, accurate and continuous measurement of FHR curve
Flexible and convenient operation with wireless remote controllers
Dual power supply system of AC, optional built-in rechargeable lithium battery
Net work function
Real-time monitoring of twin FHR(option)
Standard configuration
FM-700T main unit
High sensitive 9 element 1MHz F.T.M. transducer
Belts
Coupling gel
Z-fold thermo paper
Options
Twins monitoring
Built-in rechargeable lithium battery
Wall mount
Specifications
Safety standard: IEC 60601-1, CE marked
Power supply:
AC 100-240v, 50/60Hz
Display
8.4' color LCD display, 60 degree foldingolding
Recorder: Thermal printer
Record paper: Z-fold, thermal paper
Printing width: 112mm
Effective printing width: 104mm
Printing speed: 1,2,3cm/min
Record message: Data, time, TOCO Trend graph, paper speed
FHR type, FHR Trend graph, etc
Interface:
RJ45 interface
FHR
Technique: Ultrasound pulse Doppler and auto correlation
Ultrasound Frequency: 1MHz
FHR range: 50-210bpm
Resolution:1bpm
Accuracy:+-2bpm
TOCO
Range:0-100%
Resolution:1%
Non-linear Error:+-10%
Zero control: Manual
Fetal movement
Manual fetal movement mark
Packing information
Dimension: 320*260*80mm
Dimension: 320*260*80mm
Net weight:5kgs
Gross weight:6kg
Carton size:41*31*23mm
Accuracy: +_0.2°Cdeg;Cdeg;C
FHR
Ultrasound sensor: 12 elements doppler transducer
Ultrasound frequency: 1MHz(+-5%)
Ultrasound power:≤3Mw/cm2/cm2/cm2
BPM range: 60-210bpm
Resolution:1bpm
Accuracy:+_1bpm/+_1%
TOCO
Measurement range:0-100 relative units
Resolution: 1 Count
Accuracy:≤+_5%+_5%+_5%
RESP
Mesurement range:1-99rpm
Resolution: 1rpm
Accuracy:+_2rpm
FM
Push marker
Automatic Fetal Movements Detection is optional
