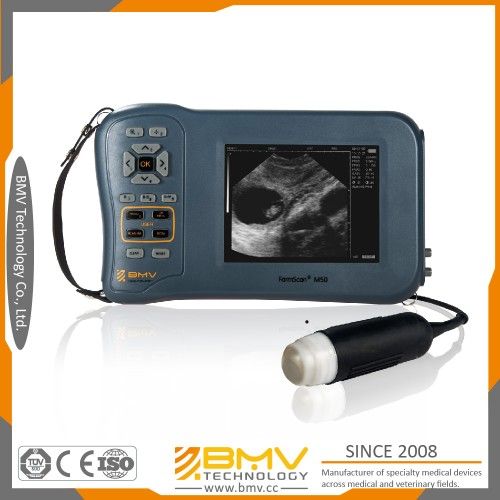

M50 CE, ISO, FDA Cow Pregnancy Ultrasound & Veterinary Ultrasound

1700-1850 USD

Model NO.	M50
Type	Ultrasound Scanner
Group	Pig Farmer
Medical Devices Reg./Record No.	Yssyjx20150068
Display Mode	B,M,B+B,B+M,4b
Frequency	2.5/3.5/5.0MHz
Battery Working Time	Over 5 Hours for 1 Battery
Export Markets	Global
Specification	CE, SGS, ISO, FDA
HS Code	90181210
Classification	Swine Ultrasound
Certification	CE, ISO13485
Medical Device Regulatory Type	Type 2
Model Number	M50
Size	5.8 Inch
Weight	480g (Battery Included)
Image Storage	148 Images
Trademark	BMV
Origin	Shenzhen, China

Application:
M50,featuring premium image quality and robust design, suited for all veterinary applications in difficult field conditions on a daily basis. No matter you scan dairy or beef cows to study the ovaries, uterus and foetal structures for reproductive exams, as well as equine reproduction and some other small ruminants reproductive examination, FarmScan® M50 is the ideal choice!oice!oice!
Technical Specification:

Monitor	5.8 inches TFT LCD
Display modes	B,B+B,B+M,M,4B
Display Depth	≥190mm, multi-stepsstepsteps
Probe frequency	2.5/3.5/5.0 MHz
Gray Scale	256
Report	Obstetric report
Image Process	Image smoothen, histogram, pseudo color
Image control	Brightness, Contrast ratio;
Obstetrics Measurement	GA for bovine,equine,swine,sheep,goat,cat,dog
(Pig-HL,Sheep/goat- USD,Bovine-BL,SL,HL,Dog-BD,GSD,HD,BD)
Image magnification in four levels	×1.0,×1.2,×1.5,×2.0 timestimes;1.5,×2.0 timestimestimes;1.5,×2.0 times
Image magnification	8 levels zoom in
Operating time	6 hours of continuous operation
High speed USB socket	connect to PC & Printer, download image to PC to PCto PC
Net weight	0.5kg
Image storage	≥150e;150;150
Dimension	40mm X 250mm X 120mm

Standard configuration:
M50 machine
abdominal mechanical sector probe
Li-ion high-power-capacity battery (6 hours/battery )
Battery charger (AC110V~250V,50/60Hz)
Neck strap and hand strap
Aluminum alloy carry case
User guide
Optional:
Optional mechanical sector probe;
Li-ion high-power-capacity battery ;
Car Charger;
Leather cover for protection and sit on the wrist
I-Scan® Video Gogglesgglesggles
