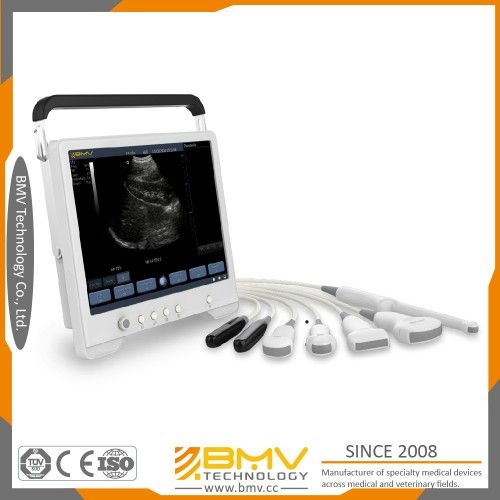

The best-selling TouchScan® 20 (TS20), with compact size and ease of use ,can now meet your requirements of high image quality, versatility, mobility and affordability of traditional B/W ultrasound for General Imaging, Women's Health, even Point-of-Care applications.tions.ions.
SIMPLE TOUCH,TO SAVE TIME
Using the one-touch measurement features of TS20 exam results are delivered with maximum efficiency ,and quick diagnosis report can help providers make critical decisions more easily. This, in turn, enables the convenience of daily operation and reduces repetitive stress injuries due to daily activities.
EASE TO USE
Intuitive easy-to-use features simplify and increase productivity of examinations
One-button image optimization with Q-scan button
Fast system boot-up within 40s
AFFORDABLE REALITY
Fully Compatible with 7 types BMV ultrasound probes
Multi-frequency probes for different applications
Image enhancement presets for specific applications
USB Auto-Export& DICOM& PRINTERp; PRINTER; PRINTER
New Auto-Export allows for easy, automatic image transfer at exam close;
Printers ,Video Printer, DICOM 3.0 support(Optional) are supported , so easy to move from room to room.
All these factors contribute for better workflow and higher efficiency.
Technical Specification
B&W mode: B,M,2B,B/M,4BB/M,4B/M,4B
Gray sacle: 256
Display: 15'LCD monitoronitor
Transducer frequency: 2-11Mhz
Digital technology: Wide-angle imaging
Panoramic focusing technology
Rolling M technology
Scanning depth: 300mm
Imaging Processing
Pre-processing: Cloud processing technology
8-segment TGC
Gain(B&W)amp;W)mp;W)
Dynamic range
Persisitence
M Soften
Noise suppression
Post-processing: Image enhancement
Gray Map
Colorize Map
Tissue Specific Imaging
Left/right reverse
Up/down reverse
Functions
Cine-loop: 334 frame cine loop memory
USB ports: 2
Zoom: Pan zoom
THI: Tissue Harmonic Imaging
Qopt: Optimize
DICOM 3.0: DICOM 3.0
Measurement & Calculationstionstions
B mode: Distance, angle, area, volume, trace length, distance ratio
M mode: Distance, time, slope, HR
Software packages: Abdomen, OB, gynecology, small Part
Others
Transducer connector: 2 active transducer connector ports
Peripheral ports: Video,2 USB ports,1 networking port,1 power inlet,1 equipotential
terminal
Power supply: AC 100-240V 50/60HZ <80VA;80VA
Dimensions(main unit): 358mm(W)´366mm (L)´65mm (H)cute;65mm (H)cute;65mm (H)
Packing dimensions : 378mm(W)´376mm(L)´85mm(H)acute;85mm(H)acute;85mm(H)
Net weight: Approximately 3.0kg
Gross weight: Approximately 5.0kg
