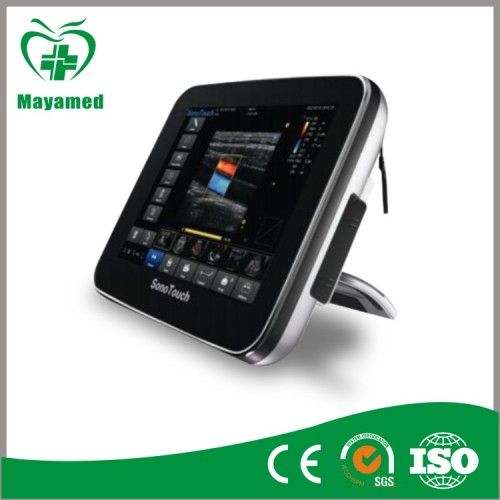

Portable Touch Screen B ultrasound scanner
Operation Panel
l Touch Screen
Display Screen
l High resolution color LED
* Diagonal dimension: 10.4 inch
* Resolution: 1024X768
* contrast adjustment
Applications
Nerve
MSK
Small parts
Vascular
Abdomen
Gynecology
Obstetrics
Urology
Pediatrics
Scanning Method
Electronic convex
Electronic linear
Electronic micro convex
Transducer Types
C3 convex probe, center frequency 3.5MHz
V6 micro-convex probe, center frequency 6.0MHz
L7M linear probe, center frequency 7.5MHz
MC3 micro-convex probe, center frequency 3.0MHz
L7S linear probe, center frequency 7.5MHz
R7 rectal probe, center frequency 7.5MHz
L5V rectal probe, center frequency 5.0MHz
MC5 micro-convex probe, center frequency 5.0MHz
MC6 micro-convex probe, center frequency 6.0MHz
P3 phase probe, center frequency 3.0MHz
Image Modes :
System
Overview
B mode
M mode
Display Mode
Quad/dual display (for B mode)
Duplex mode: B/M
Standard Configuration :
High resolution 10.4 Inch LED display
1 active probe port
16G high speed memory (SonoTouch 10 4G, 20 16G)
USB ports :left side 2 Memory Stick (Kingston DTI/2GB recommended); 1 mini-USB
Ethernet port
S-video out port
General measurement package
Clinical measurement package
Multi-language screen display
EASYVIEWTM: image archive system
Patient information management system
Building reporting system
Intelligent Zoom
Real-time Zoom
Multiple Compound Imaging (MCI)
SRA
3.5MHz Convex probe, C3
Peripherals
Video printer: Mitsubishi P93W; Sony UP-897MD
PC printer : HP 2055d
Car charger
B Mode
.Acoustic power (10 steps)
.Gain (0~255)
.TGC (8 segments)
.Depth (3.7~24.6cm,depend on the probe types)
.Focus number (1~4,depend on the probe types)
.Focus position (16 steps)
.Scan width (25%,50%,75%,100%)
.Line density (Low, High)
.Dynamic (30~90dB)
.Frame averaging (0~7)
.B rejection (0-15,16 steps)
.Smooth (0~7)
.Edge enhancement (0~7)
.Compound (0,1,2)
.Gamma curve
.Flip (left/right, up/down)
.Zoom(4 steps)
M Mode
.Sweep speed (4 steps)
Cineloop
.Support 2D, M
.Cineloop auto/manual
.Capacity:256 frames
Storage
.4G high speed memory
.USB ports
.Still images storage format: image and jpg
.Cine loops storage format: Cine (256frames/8s)
EASYVIEW
.Image review Layout:1X1,1×2;2 ×2;3 ×3;4×4;8 ×83 ×3;4×4;8 ×8times;4;8 ×83 ×3;4×4;8 ×8
.Image management
- Delete selected image
- Export selected image
- Recall selected image
- Send selected image by DICOM
- Selected all
-Selected none
Exam Review
.Exam review:patient view, study view
.Exam management
- Delete selected exam
- Export selected exam
- Back up selected exam
- Select all
Operation System
Windows Linux Embedded
Inputs and outputs
.S-video: 1
l .VGA: 1
l .USB port: 3
l .Ethernet: 1
l .System power in: 1
l .Power button: 1
.Operating
