My-A027 3D Full Digital Color Doppler Ultrasound

bargain

Model NO.	MY-A027
Type	Ultrasound Scanner
Group	All
Trademark	MAYA
Specification	CE, ISO
HS Code	901812100
Classification	Imaging Diagnostic Equipment
Certification	CE, SGS
Style	with a Trolley
Transport Package	Carton Box
Origin	Guangzhou, China

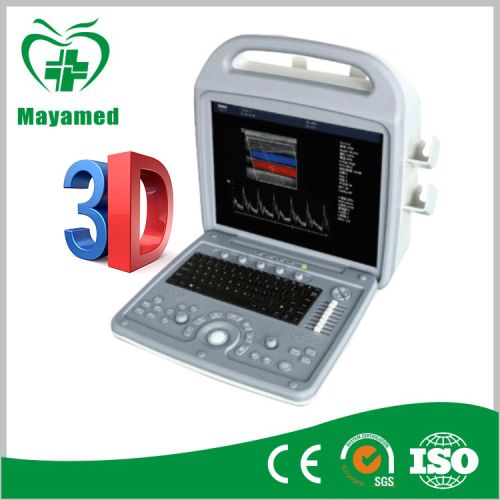

MY-A027 3D Full Digital Color Doppler Ultrasound
This MY-A027 (including 4 D) color Doppler Ultrasound diagnosis system is the best one in China now, you can view the color scanner details in the following

Device Application
abdomen, maternity, urology, superficial organization, peripheral vascular, small organ, cavity, andother interventional screening and therapeutic use.
Technical specifications
full-digital color ultrasound diagnostic system, the system has the ability to upgrade
Frequency Range	2.0-14MHz
Probe types	convex array, linear array, heart and cavity probes
Display	B / M, B / D, B / CD, B / D / CD may be the same screen display, M type and scope of PWD icon size adjustable
Frequency Probe Specifications	Abdomen convex array probe: 2.0 ~ 5.0MHz electronic convex array broadband probe frequency, the frequency range 2 - 5MHz, 3 selectable frequencies Bandwidth
	E-broadband frequency linear array probe, the frequency range 5 - 14MHz, scan angle: 60 degrees
	Intracavity frequency convex array broadband probe, the frequency range 4 - 8MHz, scanning angle ≥ 135 °35 °deg;35 °
	Optional pediatric cardiac probe, transesophageal probe, laparoscopic probe, tiny protruding array probe, intraoperative probes.
probe array element	≥ 128 128 128
Image Mode	two-dimensional B-, M-type, pulsed PW, color CFM / power Doppler and direction of the Energy PDM
B / D use either	B / PWD, B / CD / PWD three simultaneous display
Digital full anatomical M-imaging techniques, the sampling line can be anywhere in the 360-degree range as the center of arbitrary sampling
Organization of second harmonic imaging, harmonic function ≥ 2 groupsoupsoups
B / M / CD can be adjusted independently
Resolution	Lateral ≤ 2mm, longitudinal ≤ 1mmle; 1mmle; 1mm
detecting depth	≥ 240mm40mm40mm
system dynamic range	≥ 140dB40dB40dB
15cm deep, full-view scans, anatomical M-frame rate ≥ 120 / s (for pictures)res)res)
Image playback video	frame by frame, continuous playback of ≥ 300 frameframerame
Focus	Emission ≥ 8 segment focus, to receive: continuous dynamic variable aperture, dynamic apodization digital focusingsingsing
Scan Line	Every frame linear density ≥ 400 Ultrasonic Line LineLine
Measurement and Analysis	General measurement	distance, perimeter, area, slope, heart rate, pressure, residual urine, RI, PI, flow rate, etc.
	Gynecology and obstetrics special measuring software	fetal gestational age, EDC, estimation fetal weight, Take average measured multiple times, S/D ratio, etc
Character Tags	shows the date, time, patient' s name, user name, etc., custom note table, probe, frequency and body marked, with a puncture and guide lines
keyboard operation	Sino-British operation interface
position markers	≥ 30 Zhong with the location of the probe position markersrkerskers
Color Doppler display modes	speed dispersion shows that the energy shows that dispersion Show
display position adjustment	linear array scanning range of interest: -20 ° - +20 ° +20 °eg; +20 °
Doppler flow velocity	The maximum blood flow velocity measurements: PWD ≥ 6m / s; the highest single measurement of a continuous Doppler velocity ≥ 10 m / s minimum flow velocity measurements: PWD ≥ 10mm / s; 10mm / s; 10mm / s
width and location of sample volume adjustment	0.5 - 20mm adjustment classification
with a Doppler angle correction function for sampling and then
Display	≥ 15-inch high-resolution progressive-scan LCD displays.lays.ays.
Probe Interface	2 units
picture archiving and management	Dynamic and static image real-time hard drive storage capabilities, the host built-in hard disk ≥ 160G.60G.60G.
	Built-in DVD drive with a recording can be carved directly to the medical records of the CD-ROM to save.
	Playback of the spectral image can also be synchronized audible sounds
	There was a picture online clipboard functions	real-time scan, only one button operation, can be dynamic and static ultrasound images are stored in the screen side of the clipboard, you can always transfer out of contrast observation.
	The original data acquisition and processing capabilities, can playback dynamic and static image post-processing capabilities, and can convert directly to the image avi, tif, Bmp, and other common format computer
Input / Output Signal Interface	PAL-D, USB, RS-232, VCR, RGB, USB, , VGA port, etc.
Supply Voltage	AC
