Medical Mobile Color Ultrasonic Diagnostic System
bargain
add to cart| Model NO. | MA6000new |
| Type | Ultrasound Scanner |
| Medical Devices Reg./Record No. | Gsyjxzz20053230597 |
| Trademark | MAYA |
| Origin | China |
| Classification | Imaging Diagnostic Equipment |
| Certification | CE, SGS |
| Product Name | Medical Mobile Color Ultrasonic Diagnostic System |
| Transport Package | Carton |

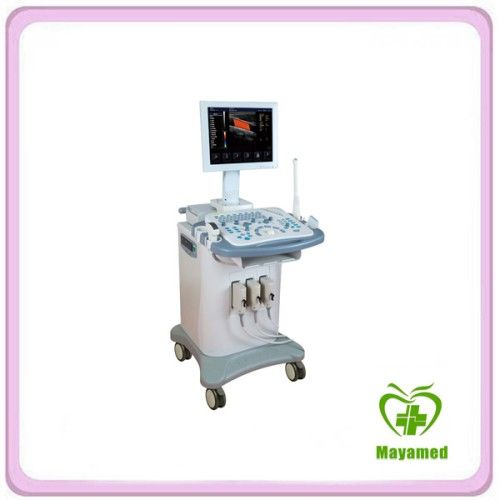

Color Ultrasonic Diagnostic System (mobile) (MA6000new)
with high precision digital beam forming and Doppler ultrasonic imaging technology, this System incorporated the latest image processing technologies such as THI, speckle reduction, multi-beam parallel processing and efficient full-digital image management system is easy to Acquire better image. Special measurement software packages, flexible configuration and Ergonomical design greatly increase operators clinical diagnosis accruacy and analysis Efficiency.
- Application
Abdomen, OB&GYN, cardiology, vascular and small parts, urology, musculoskeletal, pediatrics and etcd etcd etc
Our Advantage :
1: For all your inquires about us or our products , we will reply you in detail within 24 hours.
2: We own professional team have professional attitude to recommend products and services.
3:One year free warranty , after it is still providing after-sales service .
4: We offer OEM services , Can print your own logo on the products .
5:We have very experienced engineers , can help you better use our products .
with high precision digital beam forming and Doppler ultrasonic imaging technology, this System incorporated the latest image processing technologies such as THI, speckle reduction, multi-beam parallel processing and efficient full-digital image management system is easy to Acquire better image. Special measurement software packages, flexible configuration and Ergonomical design greatly increase operators clinical diagnosis accruacy and analysis Efficiency.
- Application
Abdomen, OB&GYN, cardiology, vascular and small parts, urology, musculoskeletal, pediatrics and etcd etcd etc
| NO. | ITEM | MA6000 new color ultrasonic diagnostic system (mobile) |
| 1 | Working Mode | B. 2B. 4B. B|M. B|D. M mode, CFM. CPA, B|C|M. color doppler, energy doppler, spectrum doppler, Duplex, Triplex doppler |
| 2 | Scanning manner | Electronic convex array +Electronic linear array |
| 3 | Magnification | ﹥ 16 Gradesades |
| 4 | Zoom | Real - time and movable magnifying |
| 5 | Application | Abdominal / Small Parts/ Obstetrics |
| /Gynecological/Cerebrovascular/ Cardiac | ||
| /Peripheral Vascular/ Galactophore/Musculoskeletal | ||
| 6 | Focusing | Transmitting focusing (16 ranges), receiving continuous dynamic focusing, acoustic lens focusing, electronic focusing etc. |
| 7 | Frequency | / Center frequency range from 2.0MHz to 10MHz |
| / Multi-frequency operation for all probes, 5 band | ||
| 8 | Display parameter | Acoustic power, total gain, dynamic range, TGC curve, gains of Doppler, pulse repetition frequency, wall-filtering ratio. EEH, FA, Gray scale, Gate, detection depth DA, SNR, TI, MI, TIB, TIC |
| 9 | Detectable Depth | 300mm |
| 10 | Gray Scale | 256 |
| 11 | Elements | 128 |
| 12 | Receiving Channel | ≥ 256 256 256 |
| 13 | Image process | CFM processing, Digital time delay technology, digital multi-echo process technology, real-time dynamic aperture , real-time filtering technology , colorful map, frame average processing, angle adjustment, and wall filter, edge enhancement, THI, TGC 8 slide control, contrast, PRF, L/R image flip, Up/Down flip image, etc. |
| 14 | Image storage | Storage and playback (by hand or automatically) of 1024 continuous image, 10000 Frame storage |
| 15 | Body mark | Over 200 kinds, user can add more by himself |
| 16 | Gain control | One total gain, 8 slides TGC control |
| 17 | Image output | output to floppy disk, CD-ROM, DVD-ROM , 6USB Ports and color video printer |
| 18 | Measure function | Except normal measurement and calculation, |
| Abdomen, obstetrics , gynecology cardiology , urology, small part , orthopedics software package , OB report | ||
| Four kinds version of database (one for user-defined) for calculating pregnant weeks and EDD by: GS. BPD. CRL. FL. HLTADLV. OFD. AC. HC , LMP. BBT etc. Calculate BPD/OFD, FL/AC, FL/BPD and HC/AC ratio, AFI , Fatal weight, fetal growth curve, Fetal Biophysical Score | ||
| 19 | Standard | Main unit 15' SVGA color monitor, resolution 1024*768024*768 3.5MHz 60D65R multi-frequency convex probe 7.8MHz45L multi-frequency linear probe |
| 3 Probe ports | ||
| One-key Optimization, | ||
| LCD Monitor | ||
| 20 | Option | 3.3MHz 110D20R multi-frequency convex probe 7.0MHz 140D10R multi-frequency convex probe |
| Color video printer | ||
| Biopsy rack | ||
| 21 | technology | 1, post-process image optimization technology to improve the image quality. |
| 2, Intelligent Speckle -reduction Technology to identify and intensify the effective tissue information from the echo signal to reduce & filter noise and improve the SNR to get more clear and penetrated imageimageimage | ||
| 3, Multibeam Parallel Processing Technology to receive multidirectional echo beam signal after reflecting one beam to improve image resolution, frame frequency quickly and reduce the noise. | ||
Our Advantage :
1: For all your inquires about us or our products , we will reply you in detail within 24 hours.
2: We own professional team have professional attitude to recommend products and services.
3:One year free warranty , after it is still providing after-sales service .
4: We offer OEM services , Can print your own logo on the products .
5:We have very experienced engineers , can help you better use our products .
