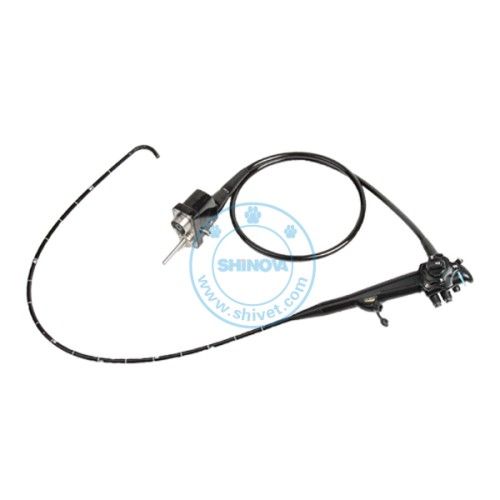

Up-Gastrointestinal Video Endoscope
Model: Maxga 88V
Feature:
Excellent Optical System
1) Super-high Resolution: With 440K pixels of Color Charge Coupled Device (CCD), makes you enjoy top class of image quality and reflects high-definitions and perfect color.
2) Circular image makes observation clear.
3) Circular image makes observation clear.
Completely waterproof design
1) Max series can be immersed completely into detergent solution when cleaning and disinfection.
2) Convenient Leakage Tester can promptly confirm whether endoscopes damage to prevent from deep damage by water.
3) Innovated Control Body makes comfortable feelings and more flexible operation.
4) To release operator pressure by angle operation, traction chain structure, and flexible bending section.
5) The durability of whole equipment is improved by long life design of bending section.
6) It is becoming from soft to rigid from the distal end of insertion tube, which allows operator to insert while applied freely and minimizes patients' pain.
Specfication:
Diameter of distal-end: 8.8mm
Diameter of insertion tube: 8.8mm
Working length: 1050mm
Total length: 1350mm
Diameter of instrument channel: 2.8mm
Field of view: 120°°deg;°
Depth of field: 3-100mm
Resolution: 440K pixels
Angulations: 210° Up, 90° Down, 100° Right/Leftg; Right/Leftg; Right/Left
Water flow: ≥ 40ml/min/min/min
Air flow: ≥ 800ml/min/min/min
Suction flow: 400ml/min
* You can also choose other specification from Shinova:
A. Maxga 96V: Distal-end diameter is 9.6mm;
B. Maxga 60V: Distal-end diameter is 6.0mm.
