Veterinary Endoscope Processor (VIS-2100BM)
bargain
add to cart| Model NO. | VIS-2100BM |
| Type | Digital Imaging System |
| Color Temperature | 5900k |
| Lamp | 50W Xenon |
| Specification | ISO, CE |
| HS Code | 90189090 |
| Classification | Imaging Diagnostic Equipment |
| LCD Monitor | 14 Inch Monitor |
| Life of Lamp | 2500h |
| Trademark | SHINOVA |
| Origin | China |
Veterinary Endoscope Center (VIS-2100BM)
Model: VIS-2100BM
Features:
This Series veterinary endoscopes have adopted SONY color CCD with 440k pixel and high sensitive for high definition images. It makes the examination more smoothly.
Full screen image shown.
Fully waterproof.
Application:
AGVE-2100AL: Working length is 3.3m, suitable for horses, cattle, whales, dolphins and other animal digestive tract examination, foreign body extraction.
AGVE-2100B: Working length is 1.5m, suitable for large dogs, sheep, pigs and other animal digestive tract examination, foreign body extraction.
AGVE-2100P: Insertion outer diameter of only 9.0mm, up to 1.5m working length. Suitable for small pet dogs, cats, seals, penguins and other animal digestive tract examination and diagnosis of foreign body extraction.
AGVE-2100S: Insertion outer diameter of only 8.0mm, up to 1.5m working length. Suitable for small pet dogs, cats, seals, penguins and other animal digestive tract examination and diagnosis of foreign body extraction.
Specifications:

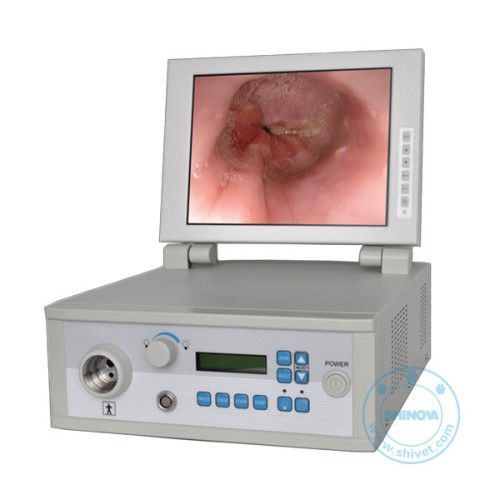

Video Center
Model: VIS-2100M/VIS-2100BM
Features:
3-in-1 design: LED or Xenon Lamp light source, video processor and 12 inch monitor is integrated together, easy to carry, can be used outdoors.
LCD display: Easy to operate.
Specifications:
Model: VIS-2100BM
Features:
This Series veterinary endoscopes have adopted SONY color CCD with 440k pixel and high sensitive for high definition images. It makes the examination more smoothly.
Full screen image shown.
Fully waterproof.
Application:
AGVE-2100AL: Working length is 3.3m, suitable for horses, cattle, whales, dolphins and other animal digestive tract examination, foreign body extraction.
AGVE-2100B: Working length is 1.5m, suitable for large dogs, sheep, pigs and other animal digestive tract examination, foreign body extraction.
AGVE-2100P: Insertion outer diameter of only 9.0mm, up to 1.5m working length. Suitable for small pet dogs, cats, seals, penguins and other animal digestive tract examination and diagnosis of foreign body extraction.
AGVE-2100S: Insertion outer diameter of only 8.0mm, up to 1.5m working length. Suitable for small pet dogs, cats, seals, penguins and other animal digestive tract examination and diagnosis of foreign body extraction.
Specifications:
| Model | AGVE-2100AL | AGVE-2100B | AGVE-2100P | AGVE-2100S | GVE-2100P |
| View of Field | 120°°deg;° | 120°°deg;° | 120°°deg;° | 120°°deg;° | 120°°deg;° |
| Depth of View | 3-100 mm | 3-100 mm | 3-100 mm | 3-100 mm | 3-100 mm |
| Range of Tip Bending | Up/Down: 180°°deg;° Left/Right: 160°°deg;° | Up/Down: 210°/90°;/90°deg;;/90° Left/Right: 100°°deg;° | Up/Down: 210°/90°;/90°deg;;/90° Left/Right: 100°°deg;° | Up/Down: 210°/90°;/90°deg;;/90° Left/Right: 100°°deg;° | Up/Down: 210°/90°;/90°deg;;/90° Left/Right: 100°°deg;° |
| Distal End Diameter | ø12.9mmh;12.9mmh;12.9mm | ø9.6mmsh;9.6mmsh;9.6mm | ø9.0mmsh;9.0mmsh;9.0mm | ø8.0mmsh;8.0mmsh;8.0mm | ø9.0mmsh;9.0mmsh;9.0mm |
| Insertion Tube Diameter | ø12.9mmh;12.9mmh;12.9mm | ø9.6mmsh;9.6mmsh;9.6mm | ø9.0mmsh;9.0mmsh;9.0mm | ø8.0mmsh;8.0mmsh;8.0mm | ø9.0mmsh;9.0mmsh;9.0mm |
| Working Channel | ø3.7mmsh;3.7mmsh;3.7mm | ø2.8mmsh;2.8mmsh;2.8mm | ø2.2mmsh;2.2mmsh;2.2mm | ø2.2mmsh;2.2mmsh;2.2mm | ø2.2mmsh;2.2mmsh;2.2mm |
| Working Length | 3300mm | 1500mm | 1500mm | 1500mm | 1050mm |
Video Center
Model: VIS-2100M/VIS-2100BM
Features:
3-in-1 design: LED or Xenon Lamp light source, video processor and 12 inch monitor is integrated together, easy to carry, can be used outdoors.
LCD display: Easy to operate.
Specifications:
| Model | VIS-2100M | VIS-2100BM |
| Lamp | 10W LED Lamp | 50W Xenon Lamp |
| Life of lamp | 35000 hours | 2500 hours |
| Color Temperature | 6000K | 5900K |
| Pump | Both durable and quiet pump | |
| Function | Auto-white balance; Enhancement; Color, Brightness, Gain adjustment; Image & video captured and saved in SD card card card | |
| Video Out | Composite video*1, Y/C video*2 | |
| Monitor | 12 inch Monitor | |
