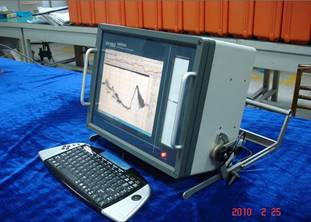

HY1602 Dual Frequency Echo Sounder System, with DSP and digital imaging technology, embedded industrial control system and data acquisition software, is an all-in-one PC based dual frequency echo sounder, which can output both echogram and thermal chart paper result simultaneously. Its main features as follows: Standard computer for easy operation interface and data storage, advanced bottom digitizer, internal large storage of data to file with time
Reference, digitized depth, position heave and annotations. It is a perfect choice for surveying in the river, lake, ocean and so on.
Function
Dual Frequency and Double channel
Output both echogram and thermal chart paper result simultaneously
Based on the computer platform and have a slave display
TVG/AVG dynamic adjustment, reinforced anti- jamming ability
Low noise receiving ability and space filter, Time filter adjustment
High speed USB interface, huge storage capacity
Echogram output for real time display, storage, playback and printing
Multi-ports communication for GPS, motion sensors and so on
Bundled data acquisition software like HYPACK, EIVA.
AC/DC Power supply
Specifications
Frequency: 208KHz/24KHz
Transducers Beam: High Fre. 208KHz, <= 8 degrees; Low Fre. 24KHz, <= 20degreesdegrees
Depth range for Hi Fre.: 0.5m-300m @ 208KHz
Depth range for Low Fre.: 1m-2000m @ 24KHz
Output power: 200W @ 208KH; 500W @ 24KHz
Accuracy: 0.01m ± 0.1% @ 208K; 0.10m ± 0.1% @ 24Ksmn; 0.1% @ 24Ksmn; 0.1% @ 24K
Software: Echogram display, event mark both internally and externally, Output/input data via serial ports, parameter setting-up
Interface: 2 RS232, 4 USB2.0, 1VGA and 1 LAN for communication
Power Supply: 22-31V DC or 180-260V AC
Power Consumption: 100W
Recording: Echogram Large capability hard disk storage and Thermal chart paper recording
Composition
Main Unit
Dimensions: 400 × 200 × 310mm× 310mm 310mm× 310mm
Weight: 17.5kg
Transducer
Weight: 20kg
Cable Length: 15m (adjustable)
Supporting Tube:
Dimensions: 3× 1.5ms; 1.5ms; 1.5m
Weight: 13kg
