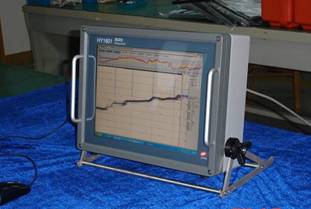

HY1601 Echo Sounder System, based on the computer platform, with DSP and digital imaging technology, embedded industrial control system and data acquisition software, is a portable and integrated digital echo sounding system. Its main features are as follows: Standard computer for easy operation interface and data storage, advanced bottom digitizer, internal large storage of data to file with time reference, digitized depth, position heave and annotations and it can be
Compatible with all survey software like HYPACK, EIVA and any other software package. It is a perfect choice for surveying in the river, lake and ocean.
Function
Based on the computer platform and have a slave display
TVG/AVG dynamic adjustment, reinforced anti- jamming ability
Low noise receiving ability and space filter, Time filter adjustment
High speed USB interface, huge storage capacity
Echogram output for real time display, storage, playback and printing
Multi-ports communication for GPS, motion sensors and so on
Bundled with data acquisition software like HYPACK, EIVA.
AC/DC Power supply
Specifications
Frequency: 208KHz
Transducer Beam: 208KHz, <= 8 degreesrees
Depth range: 0.3m-300m @ 208KHz
Accuracy: 0.01m ± 0.1% @ 208K% @ 208K% @ 208K
Output power: 200W
Interface: 2 RS232, 4 USB2.0, 1VGA and 1 LAN for communication
Power Supply: 22-31V DC or 180-260V AC
Power Consumption: 100W
Recorder: Large capability hard disk storage
Composition
Main Unit
Dimensions: 400 × 130 × 310mm× 310mm 310mm× 310mm
Weight: 12kg
Transducer
Weight: 1.5kg
Cable Length: 10m (adjustable)
Supporting Tube:
Dimensions: 3 × 0.7ms; 0.7ms; 0.7m
Weight: 5kg
