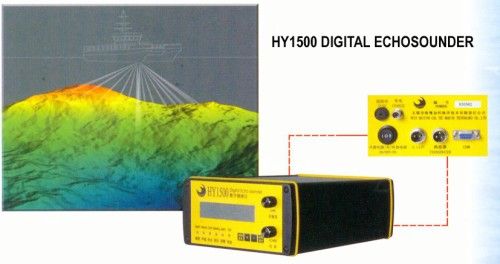

HY1500 digital echo sounder is portable survey equipment for surveying in inland water, rivers, coastal areas and in other rugged conditions. Digital processing enables the instrument to offer fully automatic bottom digitizing capabilities. A RS-232 serial port enables communication to some external computer and makes the auto surveying possible.
Specifications:
Frequency: 208 KHz
Survey range: 0.3m-100m
Accuracy: ± (. 02m+0.1%*depth)%*depth)%*depth)
Resolution: 1cm
Output power: 80Watts
Power required: 10VDC-15VDC
(Built-in rechargeable battery)
Transducer: 208 KHz-8deg.
Recording: LCD display
Data output: RS232 Standard
Niscellaneous: TVG
Draft/Velocity/Blanking adjustable
Composition:
CONSOLE
Dimension: 228X 160X 80 mm
Weight: 3KG
Transducer:
Dimension: Φ68 X 80 mm80 mm80 mm
Weight: 0.8kg
Cable length: 80 (adjustable)
Supporting Tube:
Length: Φ30mm X 0.35m0.35m0.35m
4 pieces of metal alloyed poles
Weight: 1.6 KG
