Summary

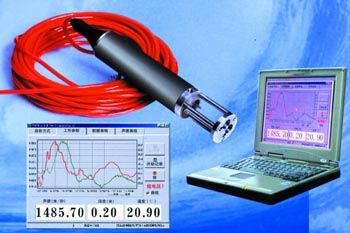

HY1200A Direct Reading SVP employs the most cost-effective methods 'sing-around probe' to measure automatically the velocity of sound, the temperature and the depth in the water where the transducer is located on for calibrating echosounders, sonar systems and other acoustic instruments. It is extensively used in the fields of hydrography, geophysical exploration, militarv application etc.cation etc.
- Key Parameters
Sing-around frequency 10.7MHz
Sample Rate 5MHz
Interface RS485, 960 BAUDS, 8n1
Power requirement One Cell Battery, 9VDC
Temperature Range 4º C-35º C Typical; C Typical; C Typical
Dimensions 30L X 6D cm
Weight 1.8KG
Power Consumption 135mW (5 hours duration for a 9VDC batt. )
- Features
Synchronous sampling for velocity, temperature and pressure (depth)
Personal computer or palm PC available for hand terminal
Time or depth for data recording
Operating software based on Windows in Chinese version
Compatible with HYPACK software for data output format
Real-time displaying and printing velocity and temperature parameters
Direct calibration using average sound velocity
Reinforced Kevl ar two cable
Featuring lower power consumption with 9DC cell
Fixed-time calibration & checking in the factory availablelablelable
