- Summary

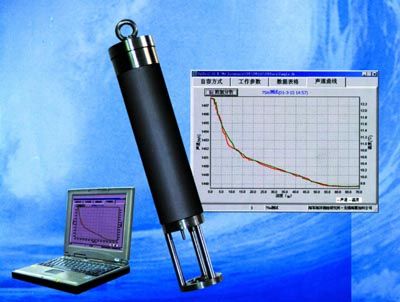

HY1200B Self-recording SVP employs the most cost-effective methods 'sing-around probe' to measure automatically the velocity of sound, the temperature and the depth in the water where the transducer is located on for calibrating echosounders, sonar systems and other acoustic instruments. It is extensively used in the fields of hydrography, geophysical exploration, militarv application etc.cation etc.
- Key Parameters
Sing-around frequency 10.7MHz
Sample Rate 5MHz
Capacity of records 4000RS
Interface RS485, 9600 BAUDS, 8n1
Power requirement One Ni-CD Cell Battery, 8.4VDC
- Features
Synchronous sampling for velocity, temperature and pressure (depth)
Involatile memory up to 4000 samples
Personal computer or palm PC available for hand terminal
Depth triggering for data recording
Operating software based on Windows in Chinese version
Compatible with HYPACK software for data output format
Real-time displaying and printing velocity and temperature parameters
Direct calibration using average sound velocity
Featuring lower power consumption with 8.4VDC Ni-CD cell
Fixed-time calibration & checking in the factory availablelablelable
