- High Definition Images
New ultra-low-noise towfish electronics
DIGITAL towfish and 2-wire cable telemetry; No crosstalk or loss of quality in the tow cable
Lateral resolution of 39mm (780KHz), 78mm (325KHz), 156mm (100KHz)
Range out to 500m (100KHz); 150m (325KHz); 25m (780KHz)
Enhanced immunity to unwanted surface reflections
- Versatile
Choice of dual frequency 325/100KHz, dual frequency 780/325KHz, or single frequency towfish

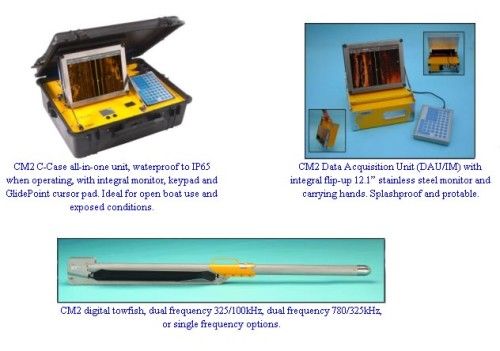

Choice of three types of data acquisition unit, including waterproof clamshell C-Case version
Option of a compact transceiver unit to work with third-party data acquisitionsystems
Wide range of cable and winch options
ROV configurations
Tow fish can be inverted for scanning ship's hulls
- Easy to Use
Intuitive, full-featured MaxPro acquisition software
All main display and towfish functions are controlled by a single keypress on the splashproof keypad; Minimum use of menus
MaxPro status bar shows all main parameters in the clearest possible form
Plotter window showing track, waypoints and swept area
Automatic towfish gain control and altitude measurement
Transducer beam depression switched in seconds, without tools
Towfish handle and slim outline allows easy launch and recovery
Licence-free Windows MaxView software allows replay, format conversion, editing, etc, on any PC, anywhere
Clear, concise, easily understood user handbook
- Robust
Towfish constructed of stainless steel; No aluminium
Safety mechanism to sace the towfish if it strikes an obstruction
Rugged data acquisition unit, with all-stainless-steel case or polypropylene clamshell case
Large capacity removable magneto-optical media has 50 year archive life
3 year warranty
