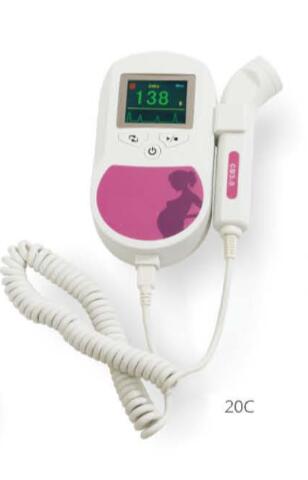

Cheap Pocket Fetal Doppler (MSL20)

bargain

Model NO.	MSL20
Nature	Ultrasound
Type	Fetal Doppler
Certification	CE
Anti-Electroshock Degree	Type B
Fhr Measuring Range	50 Bpm ~ 240 Bpm
Accuracy	± 2 Bpmmn; 2 Bpmn; 2 Bpm
Voltage	DC 3.0 V
Nominal Frequency	2.0 MHz
Specification	CE
Usage Mode	For External Use
Customized	Non-Customized
Group	Pregnency
Anti-Electroshock Type	Internally Powered Equipment
LCD Display	45 mm * 25 mm
Resolution	1 Bpm
Power Consumption	< 0.8 W
Auto Shut-off	After 1 Minute No Signal, Power off Automatically
Trademark	MSL
Origin	Guangzhou

1. Beautiful shape, Portable, Easy operation, Different Style
2. The probe has bending structure which is easy to operate and can increase the ease of the pregnant women, embodies the humane care design
3. Fetal heart rate values, bar graph and heartbeat waveform color screen display
4.Alarming in red when the fetal heart rate range is out of the normal range
5. Battery status indicator
6. The probe can be changeable
7. Probe inspection
8. Built-in speaker
9. Output for headphone
10. Auto shut off
11. Two pieces of standard 1.5V alkaline battery available which can work no less than 8 hours
Main Performance

Anti-electroshock Type	Internally powered equipment
Anti-electroshock Degree	Type B
LCD Display	45 mm * 25 mm
FHR Measuring Range	50 BPM ~ 240 BPM (BPM: beat per minute)
Resolution	1 BPM
Accuracy	± 2 BPMn; 2 BPMn; 2 BPM
Power Consumption	< 0.8 W
Voltage	DC 3.0 V
Suitable Using Range	Suitable for use after the 12th week of pregnancy
Auto Shut-OFF	After 1 minute no signal, power off automatically

Probe

Nominal Frequency	2.0 MHz
Working Frequency	2.0 MHz ± 10%smn; 10%smn; 10%
Ultrasound Output Power	P < 10 mW0 mW
Ultrasonic Output Intensity	Isata < 5 mW/cm2/cm2
Negative Peak Sound Pressure	p_ < 0.5 MPa MPa
Working Mode	Continuous wave doppler
Effective Radiating Area of Transducer	208 mm2 ± 15%smn; 15%smn; 15%

Plz just Contect me for more types of Fetal Doppler
