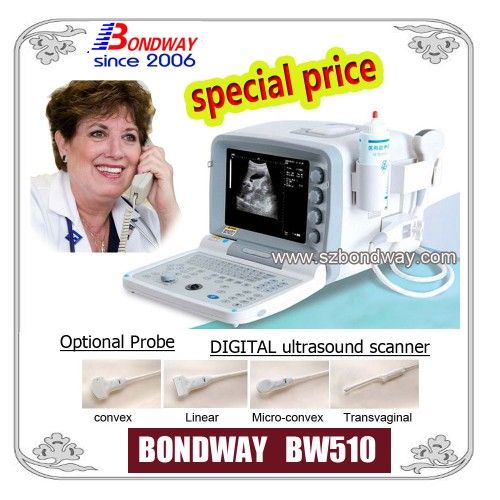

Digital Portable Ultrasound Scanner (BW510)
BW510 has been in the market for 9 years and exported to over 80 countries and it's still one of our best sold ultrasound scanners in the world market for reliable performance and high-resolution images, particularly in African and Middle East countries.
Application
This device is applicable for the diagnosis of the organs such as liver, gall-bladder, kidney, spleen, pancreas, heart, thyroid gland, breast, uterus, bladder, ovary, etc. It has been widely used in examing abdomen, obstetrics, urology, cardiology, gynecology, small parts, etc in hospital at all level.
Benefits
1. Good Image
2. Special PROMOTIONAL price
3. Professional sofeware function & Calculationationation
4. Longer Warranty Period
5. Stable performance
6. Big quantity that we've sold out in Domestic and Overseas market
Technical Specs
1. Probe: Electronic convex array, linear array
2. Scanning angle: Convex probe 60° , intra-vaginal probe 120° 120°deg; 120°
3. Frequency: 5.0-9.0 MHz
4. Display Mode: B, B/B, 4B, B/M, M
5. Gray Scales: 256
6. Monitor: 10' black & white displaysplaysplay
7. Body Marks: 64 marks
8. Channels: ﹥=16channels digital beaming compositesite
9. Resolution: Horizontal< =3mm, vertical< =2mmt; =2mm
10. Dead zone: < =5mm=5mm
11. Max scanning depth: ﹥=17cm17cm
12. Geometry position precision: Transversal< =10% Longitudinal< =10%t; =10%
13. Magnification: 8 kinds
14. Gain: 0~127dB
15. Dynamic scope: 27~100dB, visible & adjustable, Four different angles / switchable widthwidthwidth
16. Imaging technique: Full digital beam-composite, continuous dynamic focusing, dynamic aperture
17. Image storage: 100 frames permanent storage
18. Cine loop: 256 frames
19. TGC: TGC control, far field / near field
20. Image processing: Pre-process (continuous dynamic focus, dynamic aperture, dynamic filter), post-process(4 grades gamma correction)frame correlation, black/white reversal, left/right reversal, up/down reversal, edge enhancement, etc.
21. Frame frequency: 30 frames/s
22. General measurement: Distance, circumference, area, volume, heart rate, GA, fetus weight, EDD, etc.
23. OB tables: BPD, CRL, GS, FL, HL, LV, TBD, APBD, HC, AC
24. Character Display: Name, age, gender, hospital name, time, date, probe mode, frequency, focus, frame correlation, gain, contract, etc.
25. Puncture guide line: With two approvable guiding lines whose angle and position can be adjustable.
26. USB software: USB for image transfer(optional software of case report process center)
27. Video Output: PAL / NTSC
28. Power supply: 110 / 220 V + 10%, 50 MHz + 2%
