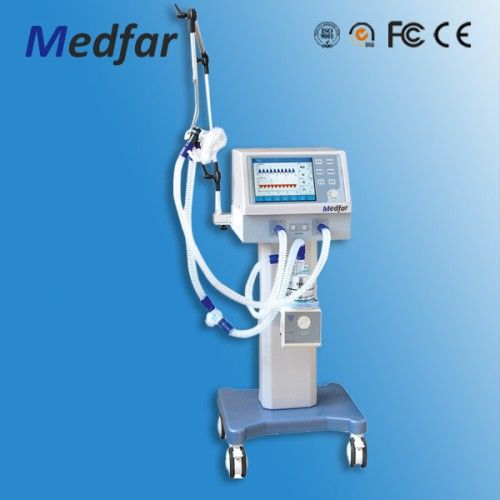

Medical Trolley Ventilator MF-H-700B II With Air-compressor
Intro:
This paragraph breathing machine adopts touch of a button to set parameters, advanced capacity and pressure breathing patterns, with electronic PEEP and CPAP built-in dual flow sensor, pressure and flow double trigger, equipped with advanced heating humidifier, optional medical air compressor. Machine through the CE certification.
Specifications
Breathing Mode IPPV, SIPPV, IMV, SIMV,PEEP, Manu, Sigh and so on;
Tidal Volume Adjustment 0~1500ml
Ventilation Capacity per Minute ≥18L;18L;18L
Oxygen Concentration 21%~100%
Ventilator Conformance ≤30mL/kpa/kpa/kpa
Respiratory Rate 1~99/m
I/E Ratio: I:E: 4:1, 3:1, 2:1, 1:1, 1:1.5,1:2.0, 1:2.5, 1:3, 1:4;
Maximum Safe Pressure ≤6.0kPa0kPa0kPa
(Ptr) Range -0.8~0.9kPa
Transfer Time from Controlled to AssistantRespiration 6s
Air Flow Adjustment 1~12 times /m
PEEP 0.1~1.0kPa
Sigh Volume: 150% of tidal volume
Oxygen Consumption:≤1.5mPa change inpressure after 1-hour operation of oxygen cylinder of 12250kPa/40L. .0L. .L. .
