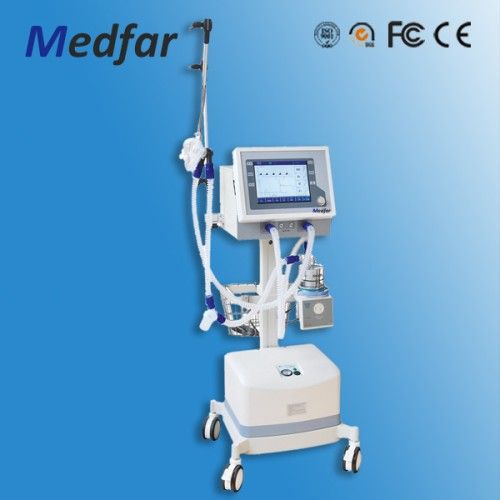

Medical Trolley Ventilator PA-900B I
Intro:
This paragraph breathing machine screen machine separation and variable angle technology, capacity and pressure breathing mode, the system parameter monitoring, support pressure and flow dual trigger, multi-sensor alarms, using imported breath control valve equipped with advanced heating humidifier, 21% -100% adjustable oxygen concentration is the preferred equipment intensive care.
Specifications
Breathing Mode IPPV, SIPPV, IMV, SIMV,PEEP, Manu, Sigh and so on;
Tidal Volume Adjustment 0~1500ml
Ventilation Capacity per Minute ≥18Le;18L;18L
Oxygen Concentration 21%~100%
Ventilator Conformance ≤30mL/kpa/kpa/kpa
Respiratory Rate 1~100/m
I/E Ratio: I:E: 4:1, 3:1, 2:1, 1:1, 1:1.5,1:2.0, 1:2.5, 1:3, 1:4;
Maximum Safe Pressure ≤6.0kPa0kPa0kPa
(Ptr) Range -0.8~±0.9kPamn;0.9kPan;0.9kPa
Transfer Time from Controlled to AssistantRespiration 6s
Air Flow Adjustment 1~12 times /
PEEP 0.1~1.0kPa
Sigh Volume: 150% of tidal volume
Oxygen Consumption:≤1.5mPa change inpressure after 1-hour operation of oxygen cylinder of 12250kPa/40L.40L.40L.
