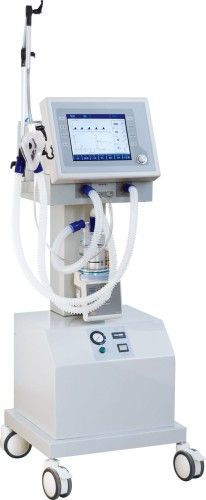

Global Manufacturer High End CE Marked Ventilator (MFH-900BII)
bargain
add to cart| Model NO. | MFH-900BII |
| Ventilation Capacity Per Minute | ≥18Le;18L;18L |
| Trademark | MEDFAR |
| Origin | Shandong |
| Tidal Volume Adjustment | 50~1500ml |
| Oxygen Concentration | 21%~100% |
| Specification | CE & ISOp; ISO; ISO |
The MFH-900BII ventilator is an electrically controlled pneumatic ventilator integrating such functions as time, volume cycling, pressure limit, etc. It provides an alternation in case of irreversible lesions in respiratory muscles or irreversible damage to upper airway to maintain the respiratory function of the patient, and also provides ventilation assistance for the patient during the recovery from a disease or operation.
Component Details
Display: 10.4' LCD display following parameters & real time waveform displayorm displaysplay
-- Arial'font-family:Arial, Helvetica, sans-serif;'﹥Gas drive and electrical control, time-pressure switching and pressure limit control
-- Arial'font-family:Arial, Helvetica, sans-serif;'﹥A high-brightness LED digital display is used to present the control frequency, tidal volume, throughput, overall respiratory rate, spontaneous breathing frequency, etc
-- Arial'font-family:Arial, Helvetica, sans-serif;'﹥A highly sensitive and responsive pressure sensor and a flow sensor are used to measure, control and display the airway pressure and gas flow rate and the ventilator is equipped with automatic throughput compensation
-- Arial'font-family:Arial, Helvetica, sans-serif;'﹥In case of an abnormality to the ventilator or misoperation, the ventilator can raise a visual-audible alarm to automatically protect itself
Ventilator construction
--Environmental protection material construction, hardly to be broken
--Trolly: fitted with 4 nos anti-static rubber castors; two of which are lockable for braking and easy maneuverability with foot operated brake provisions
Air compressor
--Power: AC220V+22V, 50Hz+1Hz and 300va has a good reserve of single-phase ac power supply
--FUSE: Φ5x20/F8A0/F8A0/F8A
--Output gas pressure: 0.3-0.4MPa
Techniques soecification
Component Details
Display: 10.4' LCD display following parameters & real time waveform displayorm displaysplay
-- Arial'font-family:Arial, Helvetica, sans-serif;'﹥Gas drive and electrical control, time-pressure switching and pressure limit control
-- Arial'font-family:Arial, Helvetica, sans-serif;'﹥A high-brightness LED digital display is used to present the control frequency, tidal volume, throughput, overall respiratory rate, spontaneous breathing frequency, etc
-- Arial'font-family:Arial, Helvetica, sans-serif;'﹥A highly sensitive and responsive pressure sensor and a flow sensor are used to measure, control and display the airway pressure and gas flow rate and the ventilator is equipped with automatic throughput compensation
-- Arial'font-family:Arial, Helvetica, sans-serif;'﹥In case of an abnormality to the ventilator or misoperation, the ventilator can raise a visual-audible alarm to automatically protect itself
Ventilator construction
--Environmental protection material construction, hardly to be broken
--Trolly: fitted with 4 nos anti-static rubber castors; two of which are lockable for braking and easy maneuverability with foot operated brake provisions
Air compressor
--Power: AC220V+22V, 50Hz+1Hz and 300va has a good reserve of single-phase ac power supply
--FUSE: Φ5x20/F8A0/F8A0/F8A
--Output gas pressure: 0.3-0.4MPa
Techniques soecification
| Physical specification | |
| Display | 10.4' LCD displayisplay |
| Mode | pneumatically pwoered and electrically controlled system |
| Trolley | fitted with 4 nos anti-static rubber castors; two of which are lockable for braking and easy maneuverability with foot operated brake provisions |
| Technical specifications | |
| Gas requirement | Medical oxygen and nitrous oxygen with a pressure ranging from 280-600kpa |
| safety valve respiratory rate oxygen concentration output | <12.5kPa5kPa 1-99 times/min 21%-100% adjustable |
| minute volume | ≥18L/MIN/MIN/MIN |
| modes of ventilation | A/C, IPPV, SIPPV, IMV, SIMV, PEET, MANUAL, SIGH, SPONT, PSIMV, CPAP, PCV |
| ventilator compliance | ≤30 MI/kPa/kPa/kPa |
| PEEP | 0-1.0kPa |
| Ptr | -10-10hPa |
| IMV frequency | 1-20bpm |
| I/E Ratio | 4:1-1:4, has the inverse ration ventilation |
| Tidal volume | setting range: 50-1500ML display range: 0-2000ml resolution ratio: 10ml |
| Inspiratory plateau | 0-1s |
| Max safety pressure | ≤6.0 KPa KPa KPa |
| Sigh | one deep breath per 80 controlled respirations, the insporation time is 1.5 times of the setting point |
| Pressure limit range | 1.0-6.0kPa |
| Airway pressure alarm | Lower: 0.1kPa-6.0kPa; Upper: 0-0.5kPa |
| Audible and visual and with yellow and red color indicating | ±0.2kPan;0.2kPan;0.2kPa |
| Ventilation colume alarm | ≥18L/min/min/min |
| Power supply alarm | AC/DC power supply are after failing to send our alarm immediately Alarm time: keep ﹥120s120s |
| The airway pressure continues to be higher than 15hPa±1hPa for 15s±1s, the the machine will raise an audible alarmn audible alarmn audible alarm | |
| Operating condition | |
| Ambient temperature | 10-40ºCordm;Cordm;C |
| Relative humidity | no higher than 80% |
| Atmospheric pressure | 860kPa-1060kPa |
| Power requirement | 100-120 Vac, 50/60Hz |
| Attention: the AC power supply used for the anesthesia machine must be well grounded. Attention: the anesthesia machine used must be equipped with a carbon dioxide monitor complying with ISO9918:1993 | |
| Storage | |
| Ambient temperature | -15ºC-+50ºC-+50ºCrdm;C-+50ºC |
| Relative humidity | no higher than 95% |
| Atmospheric pressure | 86kPa-106kPa |
| It should be stored in a room without corrosive gas and well ventilated | |
| Package | |
| Packagin box | comply with the requirement of GB/T 15464 |
| between the packaging box and product, soft material with appropriate thickness provided to prevent loosening and mutual friction during transportation | |
| moisture protection and rain protection to ensure that product is protected from natural damage | |
| Safety & AlarmAlarmAlarm | |
| Gas source pressure | immediate alarm; 'high level alarm' indicator flickers raising an audible alarmdible alarm |
| Airway pressure alarm | the airway pressure exceeds 15hPa. the max deplay is no longer than 17s. the 'high level alarm' indicator flickers raising an audible alarmdible alarm |
| Tidal volume alarm | Lower than 50ml, the alarm will be raised after one breathing cycle |
| Ventilation volume alarm | Lower: 0-12L/min; Up: 18L/min |
| Battery voltage alarm | it alarms when the battery voltage is lower than 10.5V |
| Power on self test | self test before working, assure it's working normally |
| Standard configurations | |
| QTY | NAME |
| 1 set | main unit |
| 1 set | oxygen tube |
| 2 sets | silicone mask |
| 1 pc | power line |
| 4 pcs | threaded pipe |
| 2 pcs | standard pipe |
| 1 set | oxygen reducer |
| 1 set | humidifier |
| 1 pc | battery |
| 2 sets | flow sensor |
| 2 pcs | a leather bag (blue) |
| 1 set | tools with the machine |
| 1 set | user manual (english version) |
