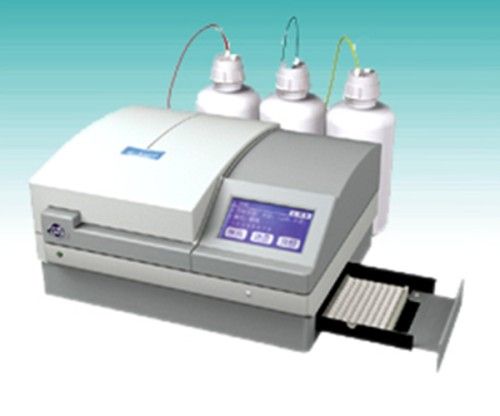

Microplate Washer (AM-W3000)
1. Direct-viewing touchscreen click, the plate freely pass in and out, easily get and put the board.
2. Enclosed washes the board, making the washing process isolated from outside, avoding the crossed contamination.
Function:
1. The touchscreen menu operation, self-define board type and wash mode
2. Discretionarily arrange wash process, setup cycling start point/end point and cycling times; Needles of imbibition and injection can be separated and moved, and also be precleaned.
3. The injection speed can adjust anti-overflow fluid.
4. Imbibition needle horizontal position can be adjused.
5. Wash Mode: Convention/Two-point and Cleaning imbibition.
6. Washing tips can be auto positioned, the height of feeding and imbibing can be adjusted.
7. The pipeline has the function of automatic washing with fixed time, and the washing time can be adjusted.
Techincal Parameter:
1. Injection Accuracy: ≤ 5%; 5%; 5%
2. Residual Volume: ≤ 2UL/wellwellwell
3. Channes: Three channels, with the fluid induction device.
4. Wash Tips: 8 and 12
5. Washing Mode: Board /lath/random strips
6. Washing Volumn: 1-9999UL (1UL increasing)
7. Washing times: 1-99
8. Soaking Time: 0-99 hours 99 minutes (continuously adjust)
9. Delay Time: 0-99 Seconds
10. Injuctiong Time: 0.1-99.9 Seconds
11. Washing mode: Storage 99 washing programmes.
12. Plate Mode: Storage 10 Plates
13. Vibrate Function: Quick, Millde, Slow selectable
14. Vibrate Time: 0-99 minutes 99 seconds
15. Soaking needles time: 0-99 hours 99 minutes
16. Auto Prcleaning interval time: 0-99 minutes
