Features

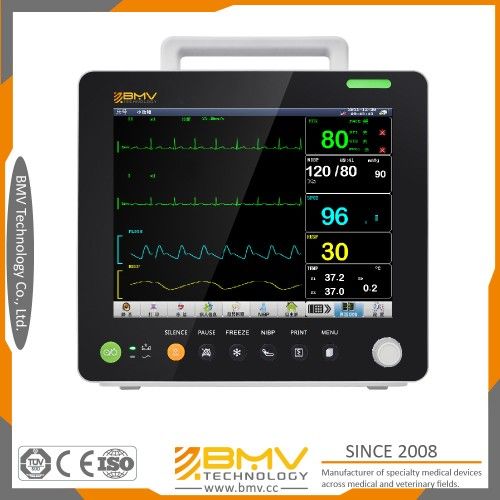

12.1'' color TFT LCD screen with multi-channel wave forms display
Have patented technology of blood pressure measurement
Anti-defibrillation, anti electric knife, ECG digital filtering
Super ECG anti-jamming capability
English and other 14 languages Operating System
Above 8000 Blood pressure storage and playback
Above 680 hour trend graph subsisting and playback
200 set alarm event storage and playback
12 hour wave line storage and playback
Built-in high-capacity rechargeable battery, with both AC and DC
Can be connected to a central monitoring system, supports wired and wireless, system software support network upgrade
Having a drug concentration calculations, breathing oxygen picture, ST segment analysis, large character interface, ECG full lead showed, abnormal heart rate analysis
Detection parameters: ECG / heart rate, noninvasive blood pressure / pulse rate, oxygen saturation, respiration, pulse, temperature
Advanced
Our monitor could be used for Adult, Pediatric and Neonatal.
Our monitor has bee n welcomed by the doctors because of its stabil ity in service re liability in operation and simplicity in maintenance . BMV Medical, win the reputation by providing high quality products.
Data Storage - stable and fast
400 groups NIBP measurements
72hours Trend data and Trend graphs
200 groups Alarm events reviewing
12hours Wave forms reviewing
Supporting for Arrhythmia analysis and drug dose calculation
Alarming - more safe and reliable
Dual alarm light for physiological and technical alarming
Max 8 wave form display simul taneously, max 6 leads ECG waveforms display
Main Specifications:
1.ECG Specifications
Lead : three-lead or five-lead
Three leads: RA, LA, LL, Mode :I, II, III
Five leads: RA, LA, LL, RL, V, Mode : I, II, III, aVR, aVL, aVF, V
Gain : ´250,´500,´1000,´20000,´1000,´2000,´20000,´1000,´2000
Heart Rate
Heart rate range:
Large dogs: 15 ~ 300bpm (stroke / min)
Small dogs and puppies: 15 ~ 350 bpm (stroke / min)
Accuracy: ± 1% or ± 1bpm, whichever is greaterhever is greaterever is greater
Resolution: 1 bpm (stroke / min)
Sensitivity: ﹥ 200 uV (peak to peak)eak)
Input impedance: ﹥ 5 (megohms)hms)
Bandwidth
Diagnostic Mode: 0.05 ~ 130Hz
Monitoring mode: 0.5 ~ 40Hz
Operation mode: 1 ~ 20Hz
CMRR
Diagnostic mode:﹥ 90 dB90 dB
Monitoring mode:﹥ 100 dB00 dB
Operation mode:﹥ 100 dB00 dB
Electrode polarization voltage range : 300mV
Pacing pulse detection
To meet the following conditions pacing pulse can be detected:
Margin: ± 2 mV ~ ± 700mV~ ± 700mV 700mV~ ± 700mV
Width: 0.1ms ~ 2ms
Rise time: 10us ~ 100μsμs;sμs
Pacing pulse suppression
Margin: ± 2 mV ~ ± 700mV~ ± 700mV 700mV~ ± 700mV
Width: 0.1ms ~ 2ms
Rise time: 10us ~ 100μsμs;sμs
Baseline recovery time : after defibrillation <3 secondsonds
Signal Range : 8 mV (peak)
Calibration signal: 1mV (peak), accuracy 5%
ST segment detection measurements
Measuring range: -2.0mV ~ + 2.0mV
Accuracy: -0.8 mV ~ + 0.8mV(error within ± 0.02mV or ± 10% )r ± 10% ) 10% )r ± 10% )
Other ranges are not defined.
2. Respiratory Specifications
Measurement method: RA-LL impedance
Respiratory impedance detection range: 0.3 ~ 3Ω
Base impedance range :200 ~ 4000Ω
Bandwidth :0.1 ~ 2.5Hz
Respiration rate
Range: Large dogs: 2 ~ 120BrPM small dogs and puppies: 2 ~ 150 BrPM
Resolution: 1 BrPM
Accuracy: 2 BrPM
Suffocation alarm : 10 to 40 seconds
3. NIBP Specifications
Measurement method: Pulse wave oscillation
Work Mode :manual / automatic / STAT
Measurement interval for Automatic measurement mode 1,2,3,4,5,10,15,30,60,90,120,180,240,480 minutes
STAT measurement mode : measurement time 5 minutes
4. SpO2 Specifications
Oximetry
Measuring range 0 to 100%
Resolution 1%
Accuracy of 70 to 100%: 2; 0% -69%: Not defined
Pulse rate
Measuring range 20 ~ 300bpm
Resolution 1bpm
Accuracy 3bpm
5. TEMP Specifications
Temperature sensor : YSI series, CYF series
Number of channels 2 channels
Measuring
Range 0 ~ 50C
Resolution 0.1C
Accuracy 0.1C (sensor error not included)
6. IBP Specifications (optional)
Number of channels 2 channels.
Pressure title ART, PA, CVP, RAP, LAP, ICP, P1, P2.
Pressure measurement range
ART 0 ~ 300 mmHg
PA -6 ~ 120 mmHg
CVP -10 ~ 40 mmHg
RAP -10 ~ 40 mmHg
LAP -10 ~ 40 mmHg
ICP -10 ~ 40 mmHg
P1, P2 -10 ~ 300 mmHg
Accuracy ± 1mmHg or ± 2%, the value is greater (not including sensor error)g sensor error)g sensor error)
Pressure Sensor
Sensitivity 5 V / V / mmHg
Impedance range 300 ~ 3000Ω
