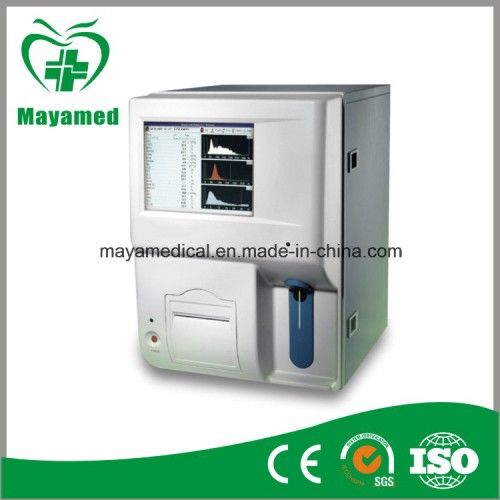

This auto hematology analyzer is 3 part differentiation of WBC, 20 parameters + 3 histograms
The details of this hematology analyzer is

QC mode: / -R/ -B/L-J, auto draw and print QC figure
Calibration mode: Auto mode and manual mode are selectable, provide original calibrator and control
Reference range type: Newborn/children/male/female and universal
Reagent: Provide original reagent
Memory: Save more than 30000 sample's detail results including histograms
Display: Large colour LCD, show all parameters and histograms at same screen
Input and output: Keyboard/mouse/Parallel Port/RS232 serial port, can be connected to computer
Printer: Inner thermal printer, can be connected to external computer and printer
Working Environment: Temperature: 18º C~35º C; Humidity: 40%RH-80%RH 40%RH-80%RH40%RH-80%RH
Voltage: AC 175 V~265V, Auto adapt according to the input voltage
Dimension: 300 mm× 400 mm× 440mm(L× W× H)40mm(L× W× H) W× H)40mm(L× W× H)
Net weight: 17Kg
Technical parameter
Sample volume: Normal mode: 9.8μ L, dilution mode: 20μ L0μ L; L0μ L
Aperture diameter: 70μ Mu; Mu; M
Quantity technology: Ultra sound quantity method, resistance from disturb
Throughput: 35 samples/hour
Clot clear: High voltage burn and high pressure flush
Calibration mode: Auto mode and manual mode are selectable, provide original calibrator and control
QC mode: / -R/ -B/L-J, auto draw and print QC figure
Display: Large colour LCD, show all parameters and histograms at same screen
Memory: Save more than 30000 sample's detail results including histograms
Input and output: Keyboard/mouse/Parallel Port/RS232 serial port, can be connected to computer
Printer: Inner thermal printer, can be connected to external computer and printer
Test parameter
WBC
Lymph#
MID#
Gran#
Lymph%
MID%
Gran%
RBC
HGB
HCT
MCV
MCH
MCHC
RDW-SD
RDW-CV
PLT
MPV
PDW
PCT
P-LCR
WBC Histogram
RBC Histogram
PLT Histogram
