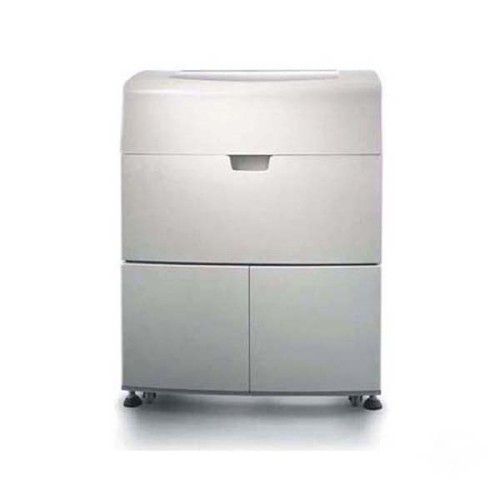

High quality automatic biochemical /biochemistry analyzer (MSLBA19)

Biochistry nlyzer system function:

Throughput: Up to 300 tests/Hour (not including ISE tests)

Test Method: End point, Fixed time, kinetic
Test Sequence: Discrete, Random access, STAT can be inserted at any time, test sequence can be sorted by samples or items

Spectrometer: Enclosed array of spectrometer and photodiodes, maintenance free.
Cuvette washing: Auto wash the cuvettes through 8 segments washing pipe and continuous use them(optional).

Reaction detect: Monitor 81 cuvettes's reaction at the same time
Photometric process: The interval time between tow consecutive photometric are exactly the same.

Pipeline system: Pressure auto released pumps and double filters to protect pumps and valves
Gearing: Plastic gear leads lower noise and accuracy of positioning of moving parts
Environmental resistance: Resistant form dust and water vapor

Automatic biochemical analyzer
Sample/reagent/stirrer system
Sample volume: 2ul~30ul, step by 0.1ul
Sample disc: 60 positions for primary tubes and secondary cups

Reagent volume: 20ul~300ul, step by 1ul
Reagent disc: Provide 60 reagent bottle positions

Reagent bottle: Particular reagent bottle without dead volume
Reagent cooling: Continuous cooling system according to the principle of peltier

Probe: Inner and outer walls are highly polished leads carry-over ﹤0.1%, level detection and vertical and horizontal collision protection.

Stirrer: Paddle stirrer coated with Teflon, stir immediately after the sample was added in.
Water consume: ﹤1.5L/hour

Carry over: Optimized item test sequence and reinforced washing process, lower the carry over and avoid probe being clotted.
