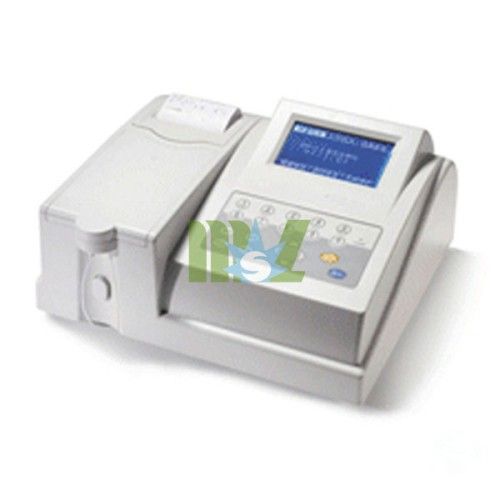

CE Approved Automatic Biochemical Analyzer (MSLBA11)

1. Automatic Biochemical Analyzer
2. Chemistry Analyzer
3. CE Approved


Specification:


Light Source: 6V 10W, halogen lamp of more than 2000 hours' life time
Spectrometer: Interference filter.
Wavelength: 340nm, 380nm, 405nm, 505nm, 546nm, 578nm, 620nm, and one wavelength free.
CML precision: ± 2nm
FWHM: ≤ 10nm
Stray light ≤ 0.5%(absorbance≥ 2.5)
Absorbance range: -0.214~3.000
Absorbance linearity: ± 0.01
Absorbance repeatability: ± 0.001
Absorbance resolution: 0.0001
Precision: ≤ 0.01
Carry over: ≤ 0.01
Temperature: 25° C, 30° C, 37° C, ± 0.3° C
Flow cell permanent quartz flow cell, minimal volume is 32μ L, and disposable flow cell
Is selectable
Sampling system: Pressure auto releasing pumps ensure the accuracy of suction volume
Operational system: VISTA, Windows XP, Windows2000
Test Method: End point, Fixed time, Kinetic, Factor, Muli-standards, Bichromatic, Dual wavelengths
Parameter Setting: Patients' profile and calculated item can be set easily
Absoption volume: 200μ L~3000μ L
Sample volume: 10μ L~50μ L
Reaction curve: Real time display the reaction curve
Memory: Able to store more than 200 parameters while 55 parameters of them are stablized;
Able to save more than 15000 test results and auto save the results if the power is off during working
QC: Auto draw the QC figure
Reagent: Open reagent
Display: LCD with high brightness
Input: Key button and touch screen
Printer: Inner thermal printer, able to be connected to external printer
Report content: Absorbance, concentration, activity, detailed patient information and
Abnormal results marking
Interface: RS-232 serial port, able to be connected to computer
Working Condition: Temperature 10° C~30° C Relative Humidity 20%~80%
Voltage: AC 85-264V, auto adapt according to the input voltage
Power: ≤ 100W
Quality System: Recognized by TUV and CMD




Test item
Liver
ALT, ALP, GGT, TP, Alb, TBIL, DBIL
Heart
LDH, CK, CK-MB, AST, a-HBDH
Lipids
CHO, TG, HDL_C, LDL_C
Lipoprotein
Apo A1, Apo B, Lp(a)
Kidney
BUN, CRE, UA
Ion
Na, Mg, Ca, K, P, Cl
Other
CO2-CP, AMS, LIP, GLU, IgA, IgG, IgM, C3, C4, CRP
