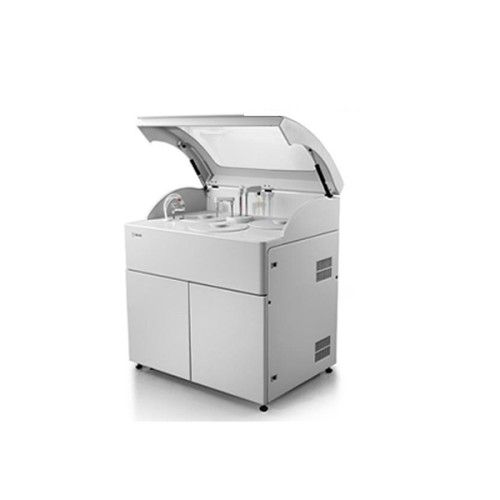

MSLBA20 Auto chemistry analyzer


System function

Throughput: Up to 450tests/Hour(not including ISE tests)

Test Method: End point, Fixed time, kinetic
Test Sequence: Discrete, Random access, STAT can be inserted at any time, test sequence can be sorted by samples or items

Spectrometer: Enclosed array of spectrometer and photodiodes, maintenance free.
Cuvette washing: Auto wash the cuvettes through 8 segments washing pipe and continuous use them, and each cuvette wash 12 times before use it again.

Photometric process: The interval time between tow consecutive photometric are exactly the same.
Pipeline system: Pressure auto released pumps and double filters to protect pumps and valves.

Gearing: Plastic gear leads lower noise and accuracy of positioning of moving parts
Environmental resistance: Resistant form dust and water vapor

Sample/reagent/stirrer system

Sample volume: 2ul~30ul, step by 0.1ul
Sample disc: 60 positions for primary tubes and secondary cups

Sample probe: Inner and outer walls are highly polished leads carry-over ﹤0.1%, level detection and vertical and horizontal collision protection
Sample tube: Both primary tubes and secondary cups are suitable

Reagent volume: 20ul~300ul, step by 1ul
Reagent disc: Provide 80 reagent bottle are highly polished leads carry-over ﹤0.1%, level detection and vertical and horizontal collision protection

Reagent bottle: Particular reagent bottle without dead volume
Reagent cooling: Continuous cooling system to the sample was added in.

Water consume: 6L/hour
Carry over: Optimized item test sequence and reinforced washing process, lower the carry over and avoid probe being clotted.
