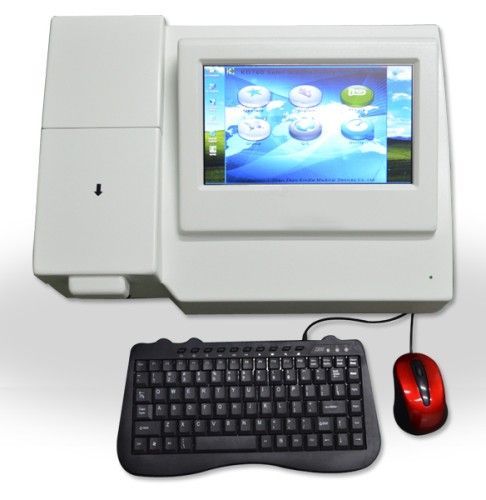

MSLBA22 Biochemistry analyzer


Features

Analytical Modes: Kinetic, fixed time, end-point, absorbance

Wavelengths: 7 standard filters: 340, 405, 492, 510, 546, 578, 630nm, one more filter optional

Full open reagent system

Items can programmed, number of items not limited

Voice prompting, making the operation interesting

Windows operation interface, figure button, mouse operation

Real time graph display and print

Lamp saving feature, longer lamp life

Large storage ability, up to1000, 000 results


Technical Specifications

Assay Method: Reaction rate, endpoint, two-point, double wavelength, coefficient, multiple standards, blank reagent, blank sample, absorbance at fixed point, Q. C, Q. C graph and turbidity

Temperature System: PELTIER temperature control component, 25, 30, 37 degree celsius, accuracy: ± 1 degree celsius

Light Source: 6V, 10W halogen lamp of more than 2000 hours'life time

GML Precision: ± 2nm

FWHM: ≤ 10nm

Stray Light: ≤ 0.5%(absorbance≥ 2.5)

Absorbance Range: -0.214~3.000

Absorbance Linearity: ± 1%

Absorbance Repeatability: ± 0.001

Precision: ≤ 1%

Carry Over: ≤ 1%

Resolution: 1m Abs

Stability: ≤ 3mAbs/h

Flow Cell: Permanent quartz flow cell, minimal volume is 32uL, and disposable flow cell is selectable

Sampling System: Pressure auto releasing pumps ensure the accuracy of suction volume

Absoption Volume: 200uL~3000uL

Sample Volume: 10uL~50uL

Operational System: Windows XP with 1GB memory capacity

Display: 10.1''LCD

Print: Print standard test A4 test report

Interface: RS-232 serial port

Working Condition: Temperature: 10-30 degree celsius, Relative Humidity: 20%-80%

Voltage: AC 85~264V, auto adapt according to the input voltage

Power: ≤ 100W

Quality System: CE
