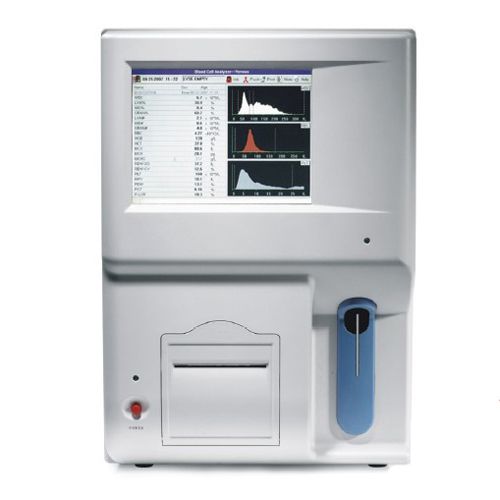

Full auto blood analyzer (MSLAB11)

Specifications

Test principle: Electrical resistance for counting and SFT method for HGB
Test Flow: Fully auto and the blood unrequired dilute or other process

Quantity technology: Ultrasound quantity dilute or from disturb
Clot clear: High voltage burn and high pressure flush
Parameter: 3 part differentiation of WBC, 20 parameters+3 histograms

Sample mode: Venous, Capilary and prediluted blood.
Throughput: 35 samples/hour
Language: English

QC mode: -R -B L-J, auto draw and print QC figure
Calibration mode: Auto mode and manual mode are selectable, provide original calibrator and control

Reference range type: Newborn, children, male, female and universal
Reagent: Provide original reagent

Memory: Save more than 30000 sample's detail results including histograms
Display: Large color LCD screen with touch screen, show all parameters and histograms at same screen

Input and output: Keyboard, mouse parallel port, RS-232 seral port, can be connected to computer
Printer: Inner thermal printer, can be connected to external computer and printer

Working environment: Temperature: 100C~350C, humidity: ≤ 85%RH
Voltage: AC 175v-265v, auto adaption according to the input voltage

Dimension: 565mm*467mm*571mm(L*W*H)
Net weight: 30kg


Technical parameter

Sample volume: Normal mode 9.8ul, dilution mode: 20ul
Aperture diameter: 70ul

Quantity technology: Ultrasound quantity method, resistance form disturb
Throughput: 35 samples/hour

Clot clear: High voltage bum and high pressure flush
Calibration mode: Auto mode and manual mode are selectable, provide original calibrator and control
QC mode: -R -B L-J, auto draw and print QC figure

Display: Large color LCD, how all sample's detail results including histograms
Input and output: Keyboard, mouse, parallel port, RS-232 serial port, can be connected to computer
Printer: Inner thermal printer, can be connected to external computer and printer

Full auto blood analyzer is one kind of our blood analyzer and even is really a bargain with high quality.
