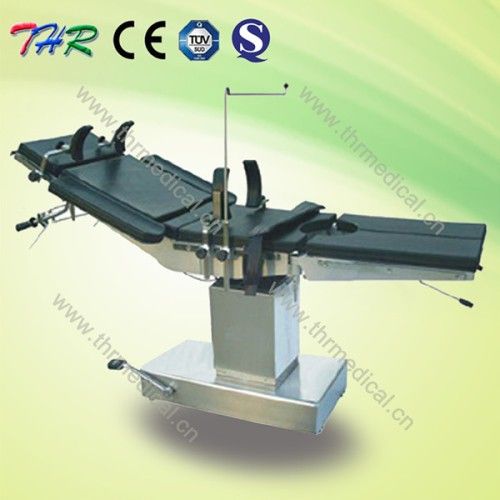

Hydraulic Operating Table(THR-OT-S103C02)
Descriptions:
1. THR-OT-S103C02 is a integrated manual operating table which is designed and manufactued to meet the consumers' needs and desires.
2. Superior stainless steel housing for the base set and support system of the table is one-time-formed. All mattresses are cast and made from polyurethane, easy to clean.
3. Moreover, the table can work without electric for its totally machinery structure. So it is safe and reliable for taking some ordinary operations, e. G., the operation on Chest belly surgery, ENT, gynecology and obstetric, urological, orthopedics.
Technicial Parameters:
---Table dimension including the rails: Length2040mm, width 540mm
---Table top dimension: Length 2010mm, width 500mm
---Table height: Lowest≤ 830mm, highest≥ 1070mm 1070mm 1070mm
---Head section turning: Up≥ 28° Down≥ 45°own≥ 45°45°own≥ 45°
---Back section turning: Up≥ 70° Down≥ 15°own≥ 15°15°own≥ 15°
---Lateral tilt: Left ≥ 15° Right≥ 15°ght≥ 15°15°ght≥ 15°
---Trendelenburg and reverse trendelenburg: Reverse trend≥ 25° Trend≥ 15°end≥ 15°15°end≥ 15°
---Leg section turning down: ≥ 70° 70°deg; 70°
---Leg section swing out: ≥ 90° 90°deg; 90°
---Armrest swing out: ≥ 90° 90°deg; 90°
---Kidney bridge lifting distance: 150mm
Stabdard Accessories
A. Anaesthesia screen frame 1 set
B. Body strap 1 piece
C. Lateral support 1 pair
D. Should holder 1 pair
E. Leg holder 1 pair
F. Clamp 1 set
G. Arm rest 1 pair
PS: We still provide surgical lamp and scrub sink for hospital operation room
