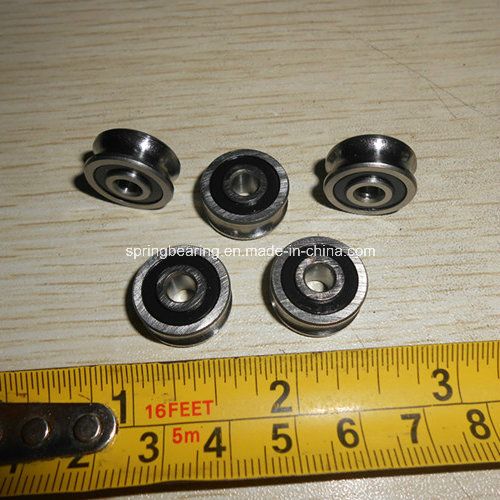

Track Roller Bearings (a circular groove) (LFR Series) (LFR50/5-6ZZ, LFR50/5-62RS LFR50/5-6 OP)

Track Roller Bearings (a circular groove) (LFR Series) (LFR50/5-6ZZ, LFR50/5-62RS LFR50/5-6 OP)

500+
1.19 USD
3000+
1.15 USD

add to cart
Model NO. LFR50/5-6 2RS
Size 5*17*7*8mm
Quality Best
Transport Package as Customer′s Request RequestRequest
Origin Jiangsu Nanjing
Material Chrome Steel
Stock Rich
Trademark JPG
Specification depends on order
HS Code 84821020

Guide rollers with a circular groove - LFR Series
1. LFR Series linear guide rail wheel rollers most widely used, economical and practical products that can fit in the cylindrical guide.
2. contacting wheel and rail for two-point contact, having good contact performance.
3. Roller double row angular contact ball bearing design and thickening of the internal structure of the outer ring, the wheel has a higher carrying capacity.
4. The roller bearing steel with high-quality manufacturing, heat treatment, precision grinding machining, and are filled with long-life high-quality multi-purpose grease. Wheel dust metal dust cover (ZZ) or rubber seals (2RS). Can also provide the wheel with concentric or eccentric pivot, some specifications are also corrosion-resistant stainless steel roller.
application of LFR series roller guide roller rail systems have the following characteristics:
1. The high-speed, low resistance, long life
The outer surface of the guide roller LFR series designed to Gothic shape, the roller work, wheel and rail forms an angle of 60 degrees for the two-point contact, friction resistance, load evenly to avoid the roller because the installation work and stress concentration caused by a manufacturing error, boundary effect, so that the rail system has a high-speed, low-power, long-life operating characteristics.
2. Easy to install
After the wheel and concentric or eccentric shaft axis, so installation is very easy to adjust the amount of eccentricity of the eccentric rollers can get the fitting preload.
3. smooth running, low error, low noise operation
Dedicated processing equipment and testing equipment to ensure the accuracy of the shape of the wheel, mature processing technology and strict quality control procedure to make all of the rollers and the outer radial surface roundness good work, so that the rail system at run-time error pole small, smooth operation, low noise operation.
Specification as followings :



(mm)

≈(g)ymp;(g)ymp;(g)
dw
d
D
C
B
A
Cw(Kn)
Cow(Kn)

LFR50/4NPP

3.5
5
4
13
6
7
8.04
1.05
0.85

LFR50/5-4NPP
R50/5-42RS
7.5
4
5
16
7
8
9
1.2
0.86

LFR50/5NPP
R50/5-62RS
8
6
5
17
7
8
10.5
1.27
0.82

LFR50/8NPP
R50/8-62RS
24
6
8
24
11
11
14
3.67
2.28

LFR50/8-8NPP

24
8
8
24
11
11
14.75
3.67
2.28

LFR5200KDD
R5200-8ZZ
50
8
10
32
14
14
18
5.6
3.6

LFR5201KDD
R5201-10ZZ
68
10
12
35
15.9
15.9
20.65
8.5
5.1

LFR5201-12KDD
R5201-12ZZ
68
12
12
35
15.9
15.9
21.75
8.5
5.1

LFR5201-14KDD
R5201-14ZZ
107
14
12
39.9
20
19
24
8.9
5

LFR5301KDD
R5301-10ZZ
130
10
12
42
19
15.9
24
13
7.7

LFR5202KDD
R5202-12ZZ
80
12
15
40
15.9
19
23.4
10
7.8

LFR5302KDD
R5302-10ZZ
163
10
15
47
19
20
26.65
16.2
9.2

LFR5204KDD
R5204-16ZZ
195
16
20
52
20.6
20.6
31
16.8
9.5

Following Items we supply as long time :
LFR50/5-6 2RS ,LFR50/8-6 2RS LFR5302-10 2RS
Packaging:
1. Neutral Package: Plastic Bag + Carton + Pallet;
2. Commercial Package: Plastic Bag + Box + Carton + Pallet;
3. As the clients' requirement.
Delivery:
1. Less than 1000 pcs , we will send by express. ( Door to Door, Convenient ),
or by air transport. ( Fastest and safest, but expensive )
2. More than 1000pcs , we will send by sea. ( Cheapest, safe )
Payment:
1. Less than 1000 pcs , 100% T/T, Western Union in advance.
2. Between 1000-10000pcs, TT, Western Union, MoneyGram.
3. More than 10000pcs , TT, L/C ,Western Union, MoneyGram.
