Detecting Sub-Clinical Mastitis Mastitis Treatment (MD -1Q)

Detecting Sub-Clinical Mastitis Mastitis Treatment (MD -1Q)

bargain

add to cart
Model NO. MD -1Q
Type Estrous Detector
Group Female
Medical Devices Reg./Record No. Yssyjx20150068
Length of The Probe 20 Cm
Battery Low Indication Automatic
Measurement Control Single Chip Microcomputer
Measuring Range 10-990 Units
Recommended Storage Temperature From 5°c to 45°co 45°cg;co 45°c
Specification 25.0 x 7.0 x 9.0 cm
Classification Biological Diagnostics
Certification CE
Medical Device Regulatory Type Type 2
Unit Weight 245g
Power Supply 1 X 9 V Battery, Type 6f-22
Power Inpu About 18 Ma
Display LCD, 3.5 Digits
Measurement Resolution 10 Units
Trademark BMV
Origin China

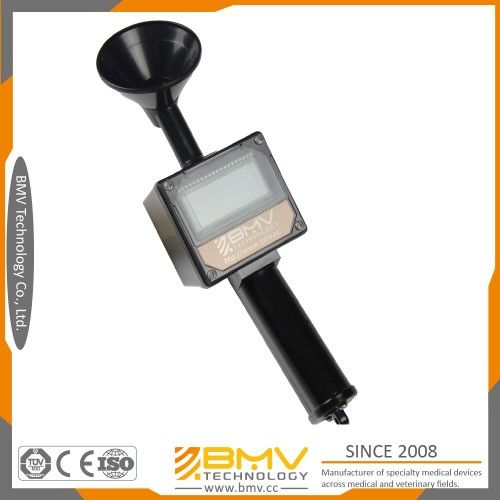

BMV MD -1Q Mastitis Detector
A device for detecting sub-clinical mastitis in its earliest, visually undetectable stage.
Why should you have it?
portable and easy to use device that allows for the production of top quality milk,
ergonomic design with a clear display,
helps to detect an early stage of illness without visible symptoms (Mastitis Subclinica),
allows for detecting medical condition separately for each quarter,
allows for effective prevention through fast udder condition monitoring,
accelerates the decision about treatment and shortens grace period,
reduces the costs of keeping the herd in good health condition,
reduces financial losses related to production of milk,
does not require using any chemicals
investment for years.
Technical data
Unit weight 245 g (with battery)
Dimensions 25.0 x 7.0 x 9.0 cm
Power supply 1 x 9 V battery, type 6F-22
Battery low indication automatic
Power input about 15 mA
Measurement control single chip microcomputer
Estimated working time on one battery pack about 27h
Display LCD, 3.5 digits
Measuring range 10-990 units
Measurement resolution 10 units
Recommended storage temperature from 5°C to 45°C 45°Ceg;C 45°C
Manufacturer BMV Technology Co., Ltd

Principle of operation
The detector measures changes in the electrical resistance of milk, as development of sub-clinical mastitis (asymptomatic stage) is accompanied by an increase in salt levels in milk, which involves a change in the resistance. This rule is considered to be the most reliable indirect test in diagnosing Mastitis Subclinica.
The test is very simple:
you need to milk the first portion of milk directly from the teat to measuring cup
press the button to read the result
pour out the milk and repeat the steps for other quarters
The set includes:
BMV MD-1Q mastitis detector,
1 x 9V 6F-22 type battery,
reusable transport packaging (made of plastic),
User manual.
24 Months Warranty
