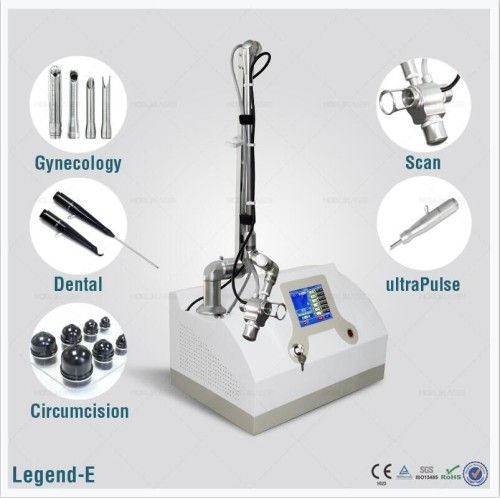

| Model NO. | Legend-E |
| Theory | CO2 Laser |
| Portable | Portable |
| Medical Devices Reg./Record No. | ISO13485,Ce |
| Power | 30W |
| Scan Mode | Free Scan; Sequence Scan; Maximum Distance Scan |
| Spot Size | ≥0.2mm at The FocusFocusocus |
| Place of Origin | Beijing, China (Mainland) |
| Packaging Details | Air Alluminum Package Box |
| Specification | ISO13485, CE |
| Type | CO2 Laser |
| Application | Beauty Industry |
| Medical Device Regulatory Type | Type 2 |
| Wavelength | 10.6um |
| Figure Option | Square/Round/Ellipse/Rectangle/Line/Hexagon |
| DOT Quantity | 400 Dots at Most |
| Warranty | 3 Years |
| Delivery Detail | 3-5 Working Days |
| Trademark | OEM |
| Origin | China |
Item | Specs |
LCD Screen | 5.7/8.4 / 10.4 /15 inch LCD real color touch screen |
Light conducting system | 7 jointed arms to conduct light |
Wavelength | 10.6µmmicro;mmicro;m |
Pulsed radiofrequency | 0.530W |
Tube Type | USA RF tube/ Glass tube |
Power | 30W |
Mode | Cutting / scan |
Laser energy | 1-30W / 5-45mj |
Step value | 1W / 5mj |
Figure option | Square, ,Round,Rectangle,Line,Hexagon,Point Square with Hollow, Triangle with Hollow, Rectangle with Hollow, Line with Hollow, Hexagon with Hollow, Point with Hollow |
Scan pattern size | 0.1x0.1mm-20x20mm |
Scan mode | Continuous, super pulse, fractional |
Dot quantity | 2500 dots at most |
Pulse duration | 0.1-10ms(10-400ms) |
Spot distance | 0.1-2mm |
Pulse energy | 1mj to 100mj is optional for each dot |
Times of scanning | 1-20 times |
Cooling system | Water and wind cooling system |
Laser apparatus | Sealed off laser device stimulated by direct current |
Condenser focus | f=50mm |
Beam divergence angle | 0.3 Mrad |
Spot size | ≤0.2mm at the focusocusocus |
Radiation time | 0.011 s |
Aiming beam | 635nm infrared ray |
Power supply | 220V/110V±10%,50HZ/60HZ0HZ/60HZ0HZ/60HZ |
Net Weight | Portable : 35KG , Vertical : 55kg |
Operation Language | English,Spanish,Russian, and others you want are optional |
