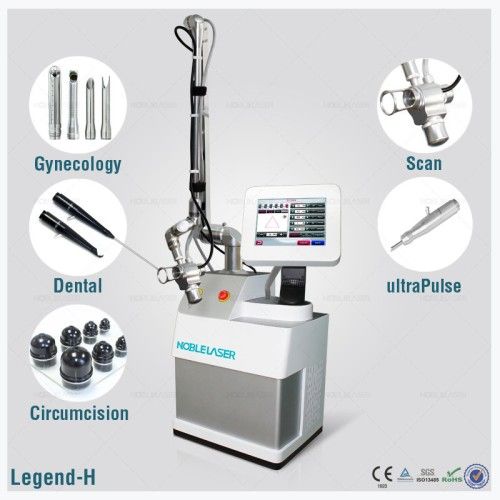

Coherent RF Tube Fractional CO2 Laser for Skin Rejuvenation

Coherent RF Tube Fractional CO2 Laser for Skin Rejuvenation

5500-9000 USD

add to cart
Model NO. Legend-H
Theory Laser
Portable Portable
Medical Devices Reg./Record No. ISO13485,Ce
Technology Fractional CO2 Laser Skin Resurfacing
Display 10.4'/8.4' Color Touch LCD Screenh LCD Screen
Transport Package Aluminum Plane Case
Origin China
Type Pigment Treatment Instrument
Application Salon
Medical Device Regulatory Type Type 2
Other Service OEM & ODMp; ODM; ODM
Function Skin Rejuvenation Scar Removal Gynecology Vaginal
Trademark Noble Laser
Specification ISO13485, CE

10600nm Standing Ultrapulse RF co2 laser fractional
1.Large LCD color touch screen, most humanist software control
2.7-jointed arm light conduct, more convenient operatin g ,less costs. 12 shapes more chosen
3. Use scanning field lens instead of focusing lens for better evenness for scan in a flat. The diameter of spot only 0.1mm.
4.5 different size scanning heads, 1 cutting head, 1 dental head ,1 gynecology head &circumcision head suitable for more applications.ions.ions.
5.Powerful software adjusts parameter easily. Multiple graphics and scanning mode for your selection. Moreover, the graphics could be two-way adjusted.
6.Continuous, super pulse, fractional different Operation Modes, There is a wider use in clinical application.
7.Focal spot diameter and interval are adjustable. Patient's unique needs can be met during treatment.
8.The best USA RF laser tube, Stable performance, high effective, No consumable costs
9,inhale and deflate air system .
How it work
Fractional CO2 Laser System fires a laser beam which is split into numbers of microscopic beams, producing tiny dot or fractional treatment zones within the selected target area only. Therefore, the heat of laser only passes deeply through the fractional damaged area. This allows the skin to heal much faster than if the whole area was treated. During the skin self-resurfacing, a great amount of collagen is produced for skin rejuvenation, eventually the skin will look much healthier and younger.
New generation high speed scanner
with Most advanced Purification system can suck away all the GaS & Dust during treatment, make the treatment more Healthy and comfortabletabletable
Available treatment heads:
1.Gyaecology heads for Vaginal tightening (Specialist Female Genital Cosmetic Surgery),
2.Andriatry heads for circumcision
3.E.N.T and Dental heads for E.N,T & dental treatmenttmenttment
Application
1. Skin renewal and regeneration
2. All colors tattoo removal
3..Remove all kinds of wrinkles
4. Remove acne and scars
5. Remove neoplasms
6. Remove pigment
7.Treat telangiectasis
8. Sun damage recovery and skin renewing
9. Actenic keratoses
10. Face lift, tighten and whiten skin
11. Pierce ears
12. Effective treatment with skin hydroponic, skin rough
13,Teeth whitening
14.vaginal tightening

LCD screen

5.7/8.4 inch LCD real color touch screen

Light conducting system

7 jointed arms to conduct light

Wavelength

10.6µmmicro;mmicro;m

Pulsed Radiofrequency

0.530W

Power

30W

MODE

Pulse

Scan

Figure option

Square

Round

Ellipse

Rectangle

Line

Hexagon

Hollow Square

Hollow
Round

Hollow
Ellipse

Hollow
Rectangle

Hollow
Line

Hollow
Hexagon

Scan pattern size

0.1x0.1mm_20x20mm

Scan Mode

free scan; Sequence scan; maximum distance scan

Dot quantity

400 dots at most

Pulse duration

0.1-10ms

Spot distance

0.1-2mm

Pulse energy

1mj to 100mj is optional for each dot.

Cooling system

Water and wind cooling system

Laser apparatus

Sealed off laser device stimulated by direct current

Condenser focus

f=50mm

Spot size

≥0.2mm at the focusocusocus

Radiation time/Interval time

0.01 1 s

Aiming beam

635nm infrared ray

Power supply

110/220V+10% 50Hz/60HZ 6A

Continuous working period

24 hours
Language English, Spanish, French, Portuguese, German, Russian

Service & Warrantyrrantyranty
1. Supply 3 years warranty and lifetime maintenance.
2. ODM&OEM:;OEM:;OEM:
Design the machine shell, software, logo according to your request.
Print your logo on the machine shell, add your logo on the software.
Multi operation language for your option.
Multi machine color for your option.
3. Delivery within 3~5 working days.
4. Offer detailed user's manual, treatment manual and training DVD, we also supply professional online guidance hands-on instruction (face to face), these will help you to be a professional person on the machine.
5. Comprehensive training in our factory and clinic for you when visit our company.
Documents for your publicity: high resolution machine pictures, training certificate, before & after treatment photos.otos.otos.
