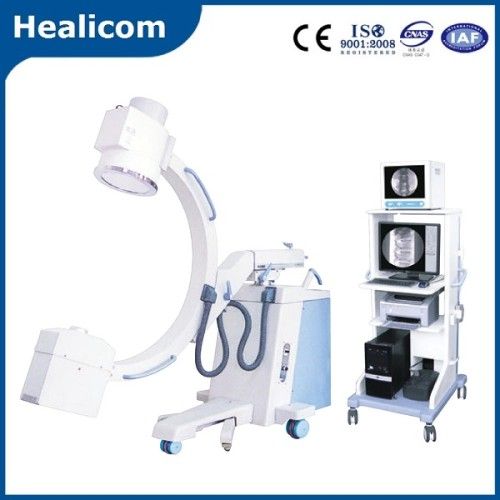

High Frequency Mobile C-Arm System (HX112)

12000 USD

Model NO.	HX112
Type	X Ray Equipment
Max Rated Capacity	3.5kw
Tube Voltage	40kv~110kv
Inverter Frequency	40kHz
Transport Package	Carton
Origin	China
Classification	Imaging Diagnostic Equipment
Certification	CE, ISO13485
Fluoroscopic Type	Automatic, Manual, Pulse
Thermal Capacity	460kj
Trademark	Healicom
Specification	High-Quality
HS Code	90221400

Fluoroscopic Capacity Max rated capacity 3.5 kW
Max rated fluoroscopic capacity Tube Current 4mA; Tube Voltage 110kV
Automatic Fluoroscopy Tube Voltage: 40kV~110kV adjust automatically
Tube Current: 0.3mA~4mA adjust automatically
Manual Fluoroscopy Continuous tube Voltage: 40kV~110kV
Continuous tube Current: 0.3mA~4mA
Pulse Fluoroscopy Continuous tube Voltage: 40kV~110kV
Continuous tube Current: 4.1mA~8mA
Tube Voltage, mAs 40kV~110kV 20~63mA 1~125mAs
Plateholde size 200mm× 250mm(8'× 10') or 250mm× 300mm(10'× 12') 250mm× 300mm(10"× 12")') 250mm× 300mm(10"× 12")
X-ray Tube X-ray tube special for High Frequency Large focus: 1.5, small focus: 0.6
Inverter Frequency: 40kHz
Thermal capacity: 30kJ (40kHU)
Video System Image Intensifier Image Intensifier made by Toshiba (9')quot;)
CCD vidicon Imported CCD Vidicon with ultra-low luminosity
Monitor Horizontal 1000 lines and vertical 800 lines, Bandwidth: 12.5MHz, Image/sec: 25
CCU
(central control) Recursive filter: K=8, 7 images storage, image upright, image overturn, positive & negative image; LIH(last image freeze, and OSD(monitor display)play)play)
Structure Direction-wheel ± 90° Revolution, can change the moving direction of the unit.of the unit.of the unit.
Ascending & descending range of pillar ≥ 400mme; 400mme; 400mm
C-arm Forward and backward movement: 200mm
Revolution around horizontal axis: ± 180°mn; 180°deg;mn; 180°
Revolution around vertical axis: ± 15usmn; 15usmn; 15
Slip on orbit: 120° (+90° ~ -30° ) ~ -30° )g; ) ~ -30° )

Fluoroscopic Capacity	Max rated capacity	3.5 kW
	Max rated fluoroscopic capacity	Tube Current 4mA; Tube Voltage 110kV
	Automatic Fluoroscopy	Tube Voltage: 40kV~110kV adjust automatically Tube Current: 0.3mA~4mA adjust automatically
	Manual Fluoroscopy	Continuous tube Voltage: 40kV~110kV Continuous tube Current: 0.3mA~4mA
	Pulse Fluoroscopy	Continuous tube Voltage: 40kV~110kV Continuous tube Current: 4.1mA~8mA
	Tube Voltage, mAs	40kV~110kV 20~63mA 1~125mAs
	Plate hole size	200mm×250mm(8'×10') or 250mm×300mm(10'×12')or 250mm×300mm(10"×12")')or 250mm×300mm(10"×12")
X-ray Tube	X-ray tube special for High Frequency	Large focus: 1.5, small focus: 0.6 Inverter Frequency: 40kHz Thermal capacity: 30kJ (40kHU)
Video System	Image Intensifier	Image Intensifier made by TOSHIBA (9')quot;)
	CCD vidicon	Imported CCD Vidicon with ultra-low luminosity
	Monitor	Horizontal 1000 lines and vertical 800 lines, Bandwidth: 12.5MHz, Image/sec: 25
	CCU (central control)	Recursive filter: K=8, 7 images storage, image upright, image overturn, positive & negative image; LIH(last image freeze, and OSD(monitor display)play)play)
Structure	Direction-wheel	±90°revolution, can change the moving direction of the unit.of the unit.of the unit.
	Ascending & descending range of pillarillarillar	≥400mm00mm00mm
	C-arm	Forward and backward movement: 200mm Revolution around horizontal axis: ±180°smn;180°deg;smn;180° Revolution around vertical axis: ±15lusmn;15lusmn;15 Slip on orbit: 120°(+90°~ -30°)g;~ -30°)eg;)g;~ -30°)
