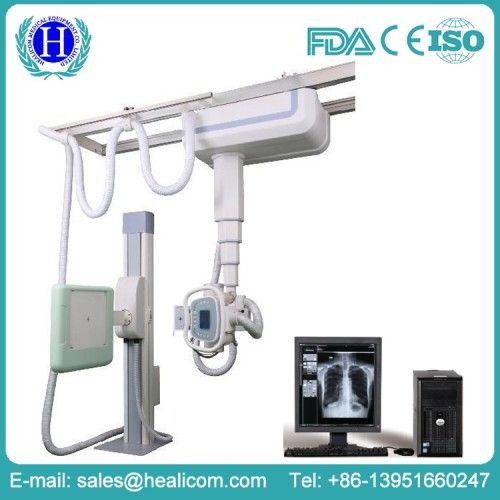

High Frequency Digital X-ray Machine Radiography System

High Frequency Digital X-ray Machine Radiography System

40000-50000 USD

add to cart
Model NO. HDR-9000
Type X Ray Equipment
Medical Device Regulatory Type Type 2
Trademark Healicom
Specification High-Quality
HS Code 9022140090
Classification Imaging Diagnostic Equipment
Certification CE, ISO13485
Medical Devices Reg./Record No. 324235423523
Transport Package Carton
Origin China
Advantages
China famous brand, more than 20 yeas R&D factory, most stable qualityalityality
Most professional and competitive price in China, your most reliable partner
Large production capacity, fast delivery time
Key features
1, HDR-9000 use the most advanced flat-panel detector, which is imported from France Thales brand, it designed for surgical and interventional units, this detector is ready to run almost instantly.
2, It offers a wide variety of operating modes ,from 30 to 100 images/second, to meet the requirements for different types of surgery ,including vascular ,cardiovascular, neurological ,orthopedic and pediatric.
3, It's based on cesium iodide technology, featuring exceptional x-ray absorption capacity . All systems fitted with the detector become 100% digital, they deliver very-high quality, distortion-free images in real time, and support 3Dviews when needed for specific applications .
4, With the Digital radiography , images collected by high-resolution imaging technology to solve the energy loss of the traditional CCD detector, and geometric distortion question, Standardized PACS system can be adapted to the new era of network needs. Stable performance, low exposure dose, high-quality images can be easily obtained.
Main specification
HF generator Brand: CPI
150KV, 65kw , 100kHz, 630mA
X- ray tube Brand: Toshiba
Dual-focus Rotating anode:0.6mm/1.2mm
Anode thermal capacity: 300KHu
Tube thermal capacity: 1250KHu
Flat panel detector Brand: Trixell
Vision: 17''x17''(43cmx43cm)
Pixel matrix: 3008x3072
Spatial resolution: 3.6LP/mm
Gray-scale: 16 bit
Imaging time:<5st;5s
Mechanical specifications Vertical movement (tube): 1450mm
Horizontal movement: 1800mm
Vertical movement: 1800mm
SID: 1000~1800MM
Tube rotating range: 0~360°°deg;°
Flat detector rotating range: 0~90°°deg;°
Imaging system Image processing:
Compare adjustment, enlarge show, measure can be done with mouse easily;
Automatic or manual window position and with adjustment
Image turnover, circumgyrate, mirror image
Image continuous enlarge and cruise
Multilevel image intensifier
Image data management:
The image data management adopt various inquiry way like name, time, ID etc
The data of patient is managed by authorization, other person can not
edit without authorization
Image output: DICOM 3.0, the images could be copied to CD/DVD
when necessary
