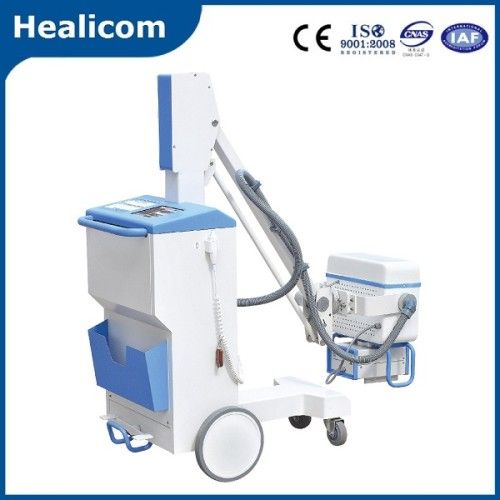

New Hx-0135 High Frequency Mobile X-ray Equipment Prices

New Hx-0135 High Frequency Mobile X-ray Equipment Prices

5000 USD

add to cart
Model NO. HX-0135
Type X Ray Equipment
Group All People
Medical Devices Reg./Record No. Sxzz20152300950
Input Voltage 220V±10%lusmn;10%usmn;10%
Mains Frequency 50Hz±1Hzlusmn;1Hzusmn;1Hz
Focus 1.5mm
Max. X-ray Tube Voltage 110kv Kv Range: 40-120kv,
Warranty 12 Months
Specification CE ISO
HS Code 9022140090
Classification Imaging Diagnostic Equipment
Certification CE, ISO13485
Medical Device Regulatory Type Type 2
Certificate CE ISO
Input Power 5.5kw
Power Modules 30kHz
Mas Range 1-125mas
Max. Generator Output 3.5kw
Trademark healicom
Origin Jiangsu, China
Specifications
HX-0135 HX-0150
Power Input voltage 220V±10%usmn;10%usmn;10% 220V±10%usmn;10%usmn;10%
Input power 5.5kW 7.5kW
Mains frequency 50Hz±1Hzusmn;1Hzusmn;1Hz 50Hz±1Hzusmn;1Hzusmn;1Hz
Source resistance ≤0.5Ω0.5Ω0.5Ω ≤0.5Ω0.5Ω0.5Ω
Main technical parameters power modules 30kHz 30kHz
Filament frequency 20kHz 20kHz
focus 1.5mm 1.5mm
Max. generator output 3.5kW 5kW
Max. X-ray tube voltage 110KV
kV range: 40-120kV,
120KV
Max. X-ray tube current: 100mA
kV range:40~120kV
mAs range 1-125mAs 1~200mAs
Main parameters of mechanical parts X ray tube vertical motion range ≥500-1750mm50mm50mm ≥500-1750mm50mm50mm
X ray source components around the cross arm vertical rotation ≥±90°±90°smn;90°±90° ≥±90°±90°smn;90°±90°
Exposure size ≥350mm*350mm (SID=65cm)5cm)5cm) ≥350mm*350mm (SID=65cm)5cm)5cm)
Machine main function Fault detection error prompt functions YES YES
ARP Human anatomy program function YES YES
Parameter calibration function YES YES

FAQ
1.What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
2.What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. But if the machine is damaged due to rough handling during the transportation, we are free of any responsibility, but we will still provide help to the buyer issue claims against the shipping company or insurance company, thus all the spare parts or expenses should be borne by buyer.
3.What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
4.Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products l spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper .
5.What is payment terms?
T/T in advance,Western Union.
