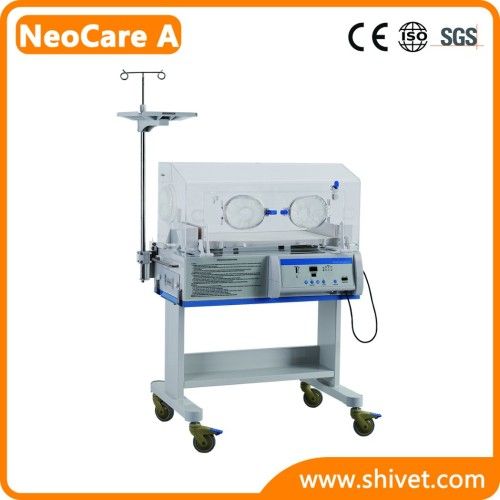

Veterinary Infant Incubator
Model: Neocare A
Brief introduction:
1)Air mode control, set temperature and air temperature are displayed separately;
2)Natural air flow humidity;
3)Failure alarm indication;
4)RS-232 connector
5)NeoCare A2, NeoCare A3 are configured with fixed Neonate Bilirubin Phototherapy Equipment model: BLT-90 with blue fluorescence lamps)
6)NeoCare A2, NeoCare A3 are configured with fixed Neonate Bilirubin Phototherapy Equipment model: BLT-90L (with LED blue lights)
Specification:
1)Power supply: AC220V-230V, 50Hz
2)Input power: 850VA
3)Mode of control: Air mode control by micro-computer
4)Control range of air temperatur: 25º C-37º C-37º Cdm; C-37º C
5)Variability of temperature: ≤ 0.5º C5º Cdm; C5º C
6)Uniformity of temperature: ≤ 0.8º C8º Cdm; C8º C
7)Noise inside hood: ≤ 60dB(A)B(A)B(A)
8)Failure alarm: Over temperature alarm, deviation alarm, sensor failure alarm, fan motor alarm, power failure alarm, system alarm and so on.
Requirements of environment:
Environment temperature: 20º C~30º C~30º Cdm; C~30º C
(Set temperature should be higher 3º C than the environment temperature)ature)ature)
Wind speed of environment: <0.3m/s3m/s
Package:
Each unit is packed as one carton:
Size: 108.5mm x 64mm x 108mm (NeoCare A/NeoCare A2)
108.5mm x 64mm x 112.5mm (NeoCare A1/NeoCare A3)
Gross Weight: 72Kg (for NeoCare A/NeoCare A1)
83Kg (for NeoCare A2/NeoCare A3)
Standard configuration:
NeoCare A: Main body, stand, temperature controller, baby compartment, I. V. Pole, shelf and so on.
NeoCare A1: Based on NeoCare A, added with the side door
NeoCare A2: Based on NeoCare A, added with the Neonate bilirubin phototherapy equipment (fixed model)
NeoCare A3: Based on NeoCare A1, added with the Neonate bilirubin phototherapy equipment (fixed model)
