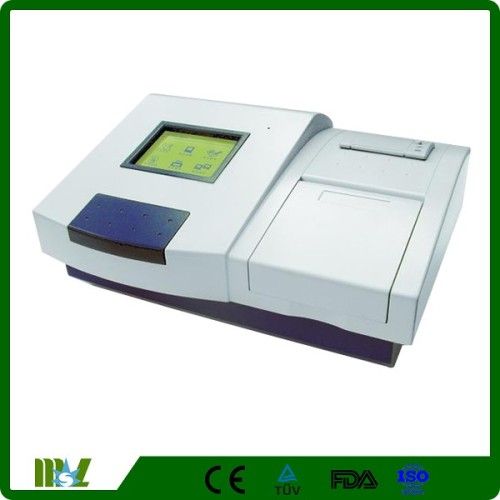

High Performance Elisa Laboratory Microplate Reader Msler01
Microplate Reader for ELISA-MSLER01
Main Features:
1. Graphical operating interface, menu designed for convenient use
2. High brightness and large size LCD, with touch screen input
3. Flexible Plate layout with Blanks, Standards, Samples, Reference, QC in one screen
4. Single or dual wavelength measurements, comprehensive qualitative and quantitative data-evaluation functions with cut-offs, curve-fits and transformation formulas
5. Proven optical system with 8 channel optical fiber scanning, auto plate centering system positions the center of the cell accurately.
6. Performing 12 different tests just in one plate
7. Multi-forms in result output including patient comprehensive report.
8. Auto Lamp adjustment and auto calibration, improve the efficiency of the system and reduce the cost.
9. Optional external mouse and standard keyboard.
10. With RS-232 interface and parallel interface.
11. Easy connect to PC , comprehensive functions with WorkStation PC software.
Technical Specifications:
Main Features:
1. Graphical operating interface, menu designed for convenient use
2. High brightness and large size LCD, with touch screen input
3. Flexible Plate layout with Blanks, Standards, Samples, Reference, QC in one screen
4. Single or dual wavelength measurements, comprehensive qualitative and quantitative data-evaluation functions with cut-offs, curve-fits and transformation formulas
5. Proven optical system with 8 channel optical fiber scanning, auto plate centering system positions the center of the cell accurately.
6. Performing 12 different tests just in one plate
7. Multi-forms in result output including patient comprehensive report.
8. Auto Lamp adjustment and auto calibration, improve the efficiency of the system and reduce the cost.
9. Optional external mouse and standard keyboard.
10. With RS-232 interface and parallel interface.
11. Easy connect to PC , comprehensive functions with WorkStation PC software.
Technical Specifications:
| 1. Photodetector | Silicon Photodicode |
| 2. Light source | Controlled Tungsten Halogen Lamp |
| 3. Wavelength range | 400nm~750nm |
| 4. Indication range | 0.000~4.000 |
| 5. Resolution | 0.001OD |
| 6. Accuracy | ≤±0.008A |
| 7. Reproducibility | ≤±0.2% |
| 8. Standard filters | 405,450,492,630nm |
| 9. Additional filters | on request, filterwheel for up to 8 filters |
| 10. Sharking | Linear Sharking , 3 speeds |
| 11. Display | 320 × 240 LCD |
| 12. Interface connections | serial RS-232, parallel interface |
| 13. Power supply | 198~242V, 50~60Hz |
| 14. Size | 460×350×197mm |
| 15. Weight | 10kg |
