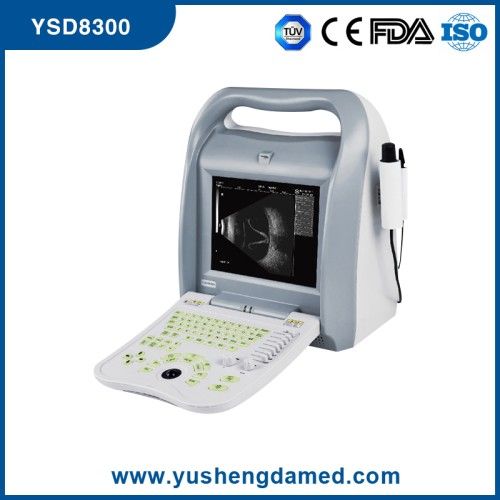

Full Digital Ophthalmic a/B Ultrasound Scanner Ysd8300
| Model NO. | YSD8300 |
| Type | Ultrasound Scanner |
| Group | Human |
| Medical Devices Reg./Record No. | 20142230425 |
| Type. | Ophthalmic Ultrasound Scanner |
| Size | 256X150X326mm |
| Certificate | Ce ISO |
| Warranty | 2 Years |
| B Mode Probe | 10MHz, Imported Transducer. |
| Specification | CE FDA SGS MD ISO 13485 |
| HS Code | 9018129100 |
| Classification | Imaging Diagnostic Equipment |
| Certification | CE, SGS, FDA, MSDS, ISO13485 |
| Medical Device Regulatory Type | Type 2 |
| Classifications. | Imaging Diagnostic Equipment |
| N.W | 4.5kg |
| Color | White |
| Exporting Market | The Whole World |
| Gains Range | 0--120dB. |
| Trademark | YSD |
| Origin | Chengdu China |
YSD8300 Embedded Control Systems, FPGA signal processing system and elaborate selected ultrasonic hardware system.
A scan
Resolution: 0.01mm
Gain adjustable: 0-120dB
Measurement range: 12-43mm(1640m/s) Accuracy: ±0.02mmn;0.02mmn;0.02mm
Measuring parameter: ACD, LENS, body Length, axial length.
Eye mode: normal/aphakia/dense cataract/PMMA, Acrylic & Silicon for Pseudoseudoseudo
Phakic eyes
Measuring Mode: Contact and Immersion, automatic and manual.
Measurement methods: A single-point measurement(under A mode); five-point measurement(under A mode).
Calculation: std. deviation, average, automatical measuring 8 groups and average, accompany waveform, results correctable.
IOL Formula: SRK-II, SRK-T, BINKHORST,HOLLADAY, HOFFER-Q, HAIGIS
B scan:
Scan mode: High accuracy stepping motor drive sector scan. Scan Angle: 53°.deg;.deg;.
Display Depth: 0~56mm
Gray: 256.
Frame frequency: 10frames/s. depth seletion: 8.
Frame correlation: 4. Edge enhancement:4. Compression Curve: 4
Post-processing: 8
100 frames permanent image storage.
Cine loop: 256 frames,can measure the playback image.
Disk management.
General Measurement: multi-electronic-rule to measure distance, circumference, area(trace method, ellipse method),volume (ellipse method), angle , histogram, profile , stenosis and curvature etc.
Specification
Power supply : 100-240V~ 1.2-0.6A Frequency:50-60Hz
Adapter output: DC12.8V 3.0A Net weight.: 4.5kg.
Dimension: 256x150x326mm(length x width x height).
Why Choose Us
* Professional manufacture for 8 years
* Various medical equipment for your selection
* Good after-sales services agreement
* Favourable and Competitive price
* Stable quality
Arial'font-family:Verdana, Geneva, sans-serif;'﹥Why choose us:
Arial'font-family:Verdana, Geneva, sans-serif;'﹥we got production and business certification from Chengdu food and Drug Administration
we got business license from Chengdu City Administration of industry and commerce
we got products certificate of registration and have checked in the website of SFDA
we have accepted the onsite check from SFDA every quarter
we finished the training of laws and regulations in medical equipments field
We have well-established system about material purchasing, employee training,store management,after-sales service process.etc
We adheres the beliefs of 'Support Healthy Life', and our company spirits are quality, service,trust,thanksgiving;anksgiving;
YSD8300 Main technical | |
| Display | 10.4 inch high resolution LCD screen, |
| Menu operation Language: | Chinese/English. |
| Probe sockets: | Double probe sockets |
| A mode probe: | 10MHz, imported probe with fixation light. |
| B mode probe: | 10MHz, imported transducer. |
| Gains range: | 0--120dB. |
| Display mode: | B, B/B, 4B, B/A, A |
| Dynamic range: | 30-100dB, visual and adjustable. |
| Gray: | 256 |
| Intelligent TGC adjustment: | 8 segments. |
| Build-in D disk: | 4GB, save mass data, images, reports, etc. |
| Report function: | print screen, IOL report, case report with picture, etc. |
A scan
Resolution: 0.01mm
Gain adjustable: 0-120dB
Measurement range: 12-43mm(1640m/s) Accuracy: ±0.02mmn;0.02mmn;0.02mm
Measuring parameter: ACD, LENS, body Length, axial length.
Eye mode: normal/aphakia/dense cataract/PMMA, Acrylic & Silicon for Pseudoseudoseudo
Phakic eyes
Measuring Mode: Contact and Immersion, automatic and manual.
Measurement methods: A single-point measurement(under A mode); five-point measurement(under A mode).
Calculation: std. deviation, average, automatical measuring 8 groups and average, accompany waveform, results correctable.
IOL Formula: SRK-II, SRK-T, BINKHORST,HOLLADAY, HOFFER-Q, HAIGIS
B scan:
Scan mode: High accuracy stepping motor drive sector scan. Scan Angle: 53°.deg;.deg;.
Display Depth: 0~56mm
Gray: 256.
Frame frequency: 10frames/s. depth seletion: 8.
Frame correlation: 4. Edge enhancement:4. Compression Curve: 4
Post-processing: 8
100 frames permanent image storage.
Cine loop: 256 frames,can measure the playback image.
Disk management.
General Measurement: multi-electronic-rule to measure distance, circumference, area(trace method, ellipse method),volume (ellipse method), angle , histogram, profile , stenosis and curvature etc.
Specification
Power supply : 100-240V~ 1.2-0.6A Frequency:50-60Hz
Adapter output: DC12.8V 3.0A Net weight.: 4.5kg.
Dimension: 256x150x326mm(length x width x height).
Why Choose Us
* Professional manufacture for 8 years
* Various medical equipment for your selection
* Good after-sales services agreement
* Favourable and Competitive price
* Stable quality
Arial'font-family:Verdana, Geneva, sans-serif;'﹥Why choose us:
Arial'font-family:Verdana, Geneva, sans-serif;'﹥we got production and business certification from Chengdu food and Drug Administration
we got business license from Chengdu City Administration of industry and commerce
we got products certificate of registration and have checked in the website of SFDA
we have accepted the onsite check from SFDA every quarter
we finished the training of laws and regulations in medical equipments field
We have well-established system about material purchasing, employee training,store management,after-sales service process.etc
We adheres the beliefs of 'Support Healthy Life', and our company spirits are quality, service,trust,thanksgiving;anksgiving;
